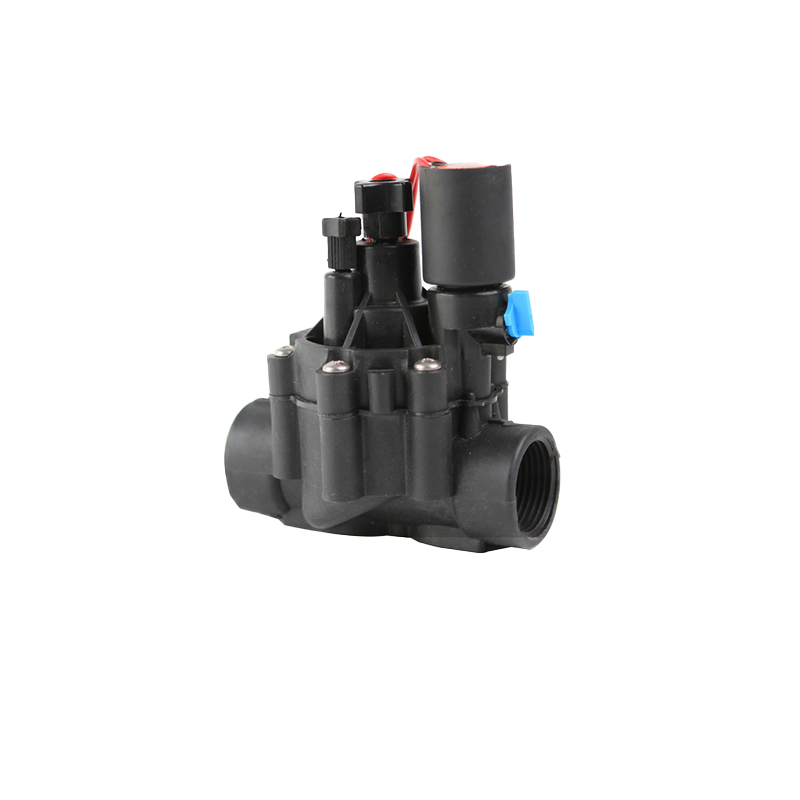

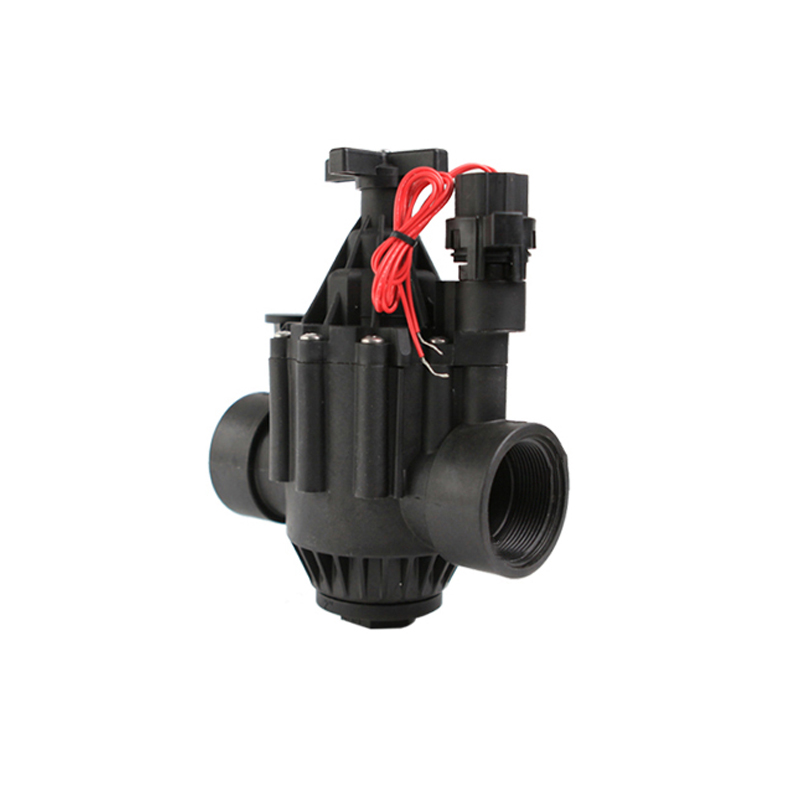

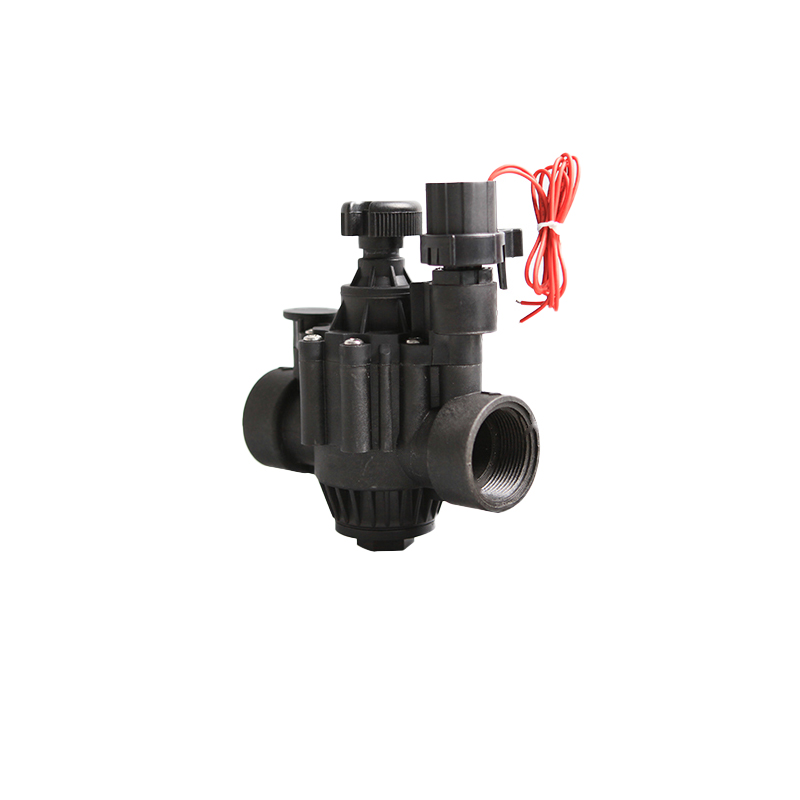

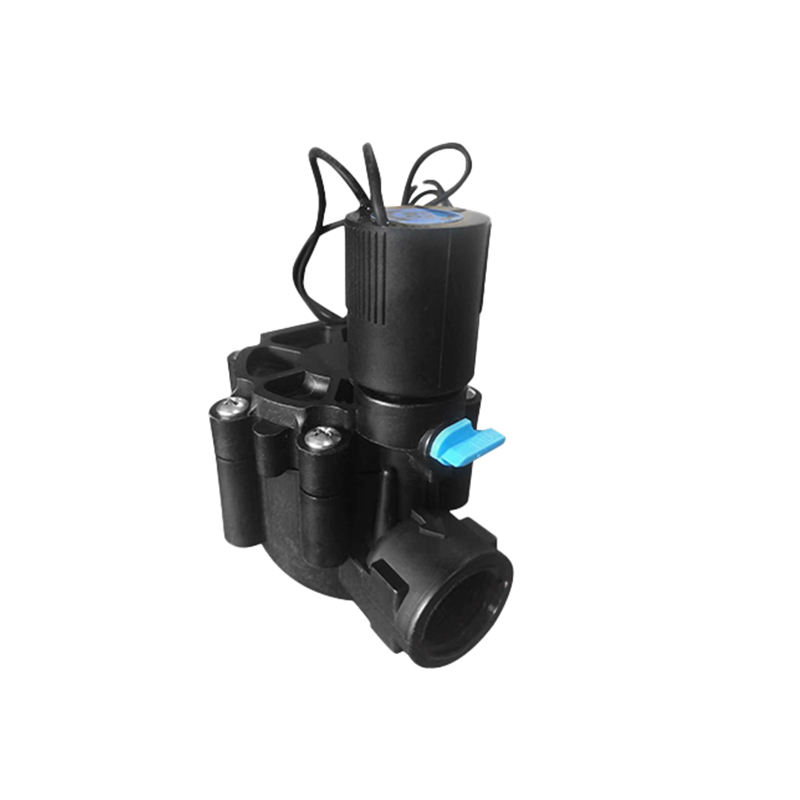

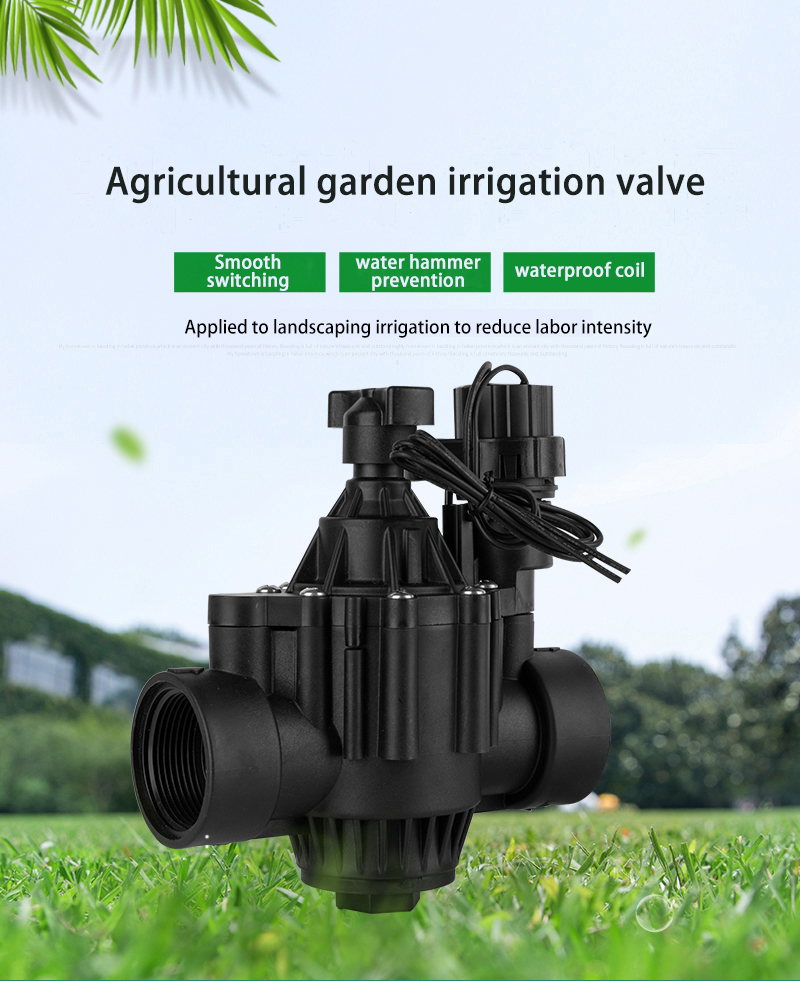

Automatic irrigation solenoid water valve

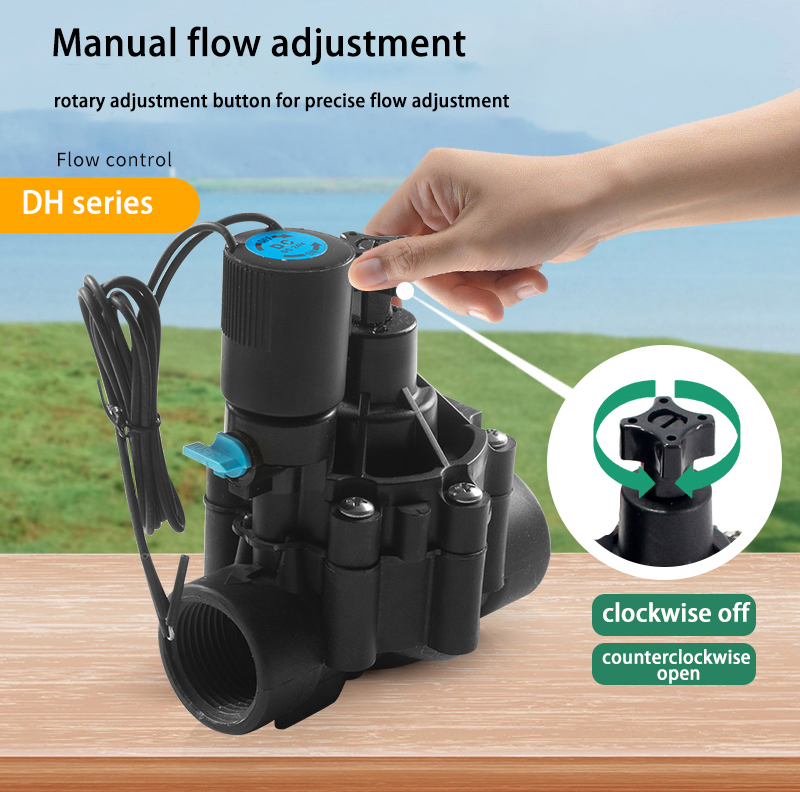

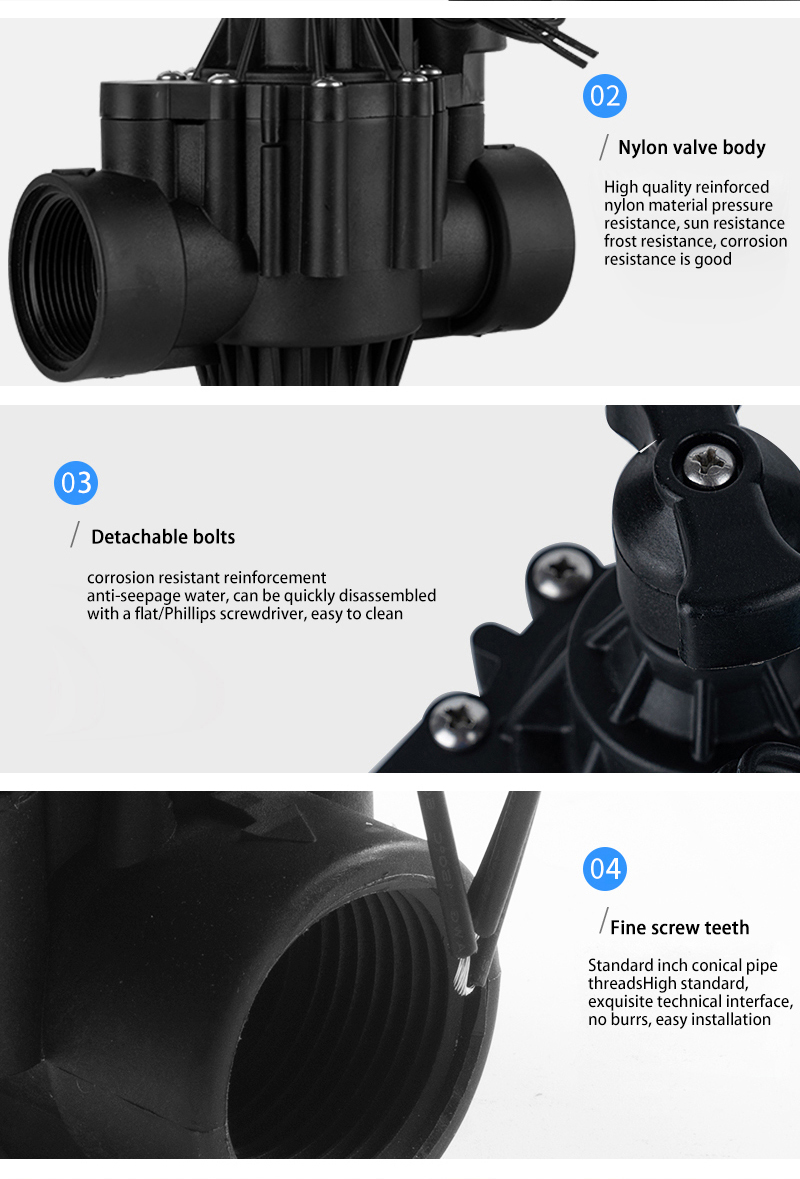

This irrigation valve can be used both manually and automatically, with its own flow adjustment function, the coil is made of waterproof coil for more durability, the valve body is made of reinforced nylon valve body, the use of special double diaphragm sealing design to effectively prevent water leakage, pressure resistance/sun resistance/frost resistance

  Size Range DN10 DN15 DN20 DN25 DN32 DN40 DN50 (3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" )
  Pressure 0.1~1Mpa
  Temperature The suitable water temperature is 0~42°C, and the ambient temperature is 0~52°C
  Voltage AC24V/AC220V/DC24V
  Medium Clean water


Body materialPlasticConnectionFemale Thread /FlangeTemperature of MediaNormal Temperature
TypeDitrct-acting — Normally Closed (N/C) / Normally Open (N/O)VoltageAC220V/AC24V/DC24VCoil typePlastic
SizeDN10~DN50Thread type

BSPP(G) / NPT

Waterproof level IP65
Mediumclean waterSeal MaterialPTFEMOQ15pcs / 30pcs / 100pcs
Pressure0-1.0Mpa Customized supportOEM / ODMBrand Name YUEER
TemperatureThe suitable water temperature is 0~42°C, and the ambient temperature is 0~52°CApplicationWater treatment, Food machinery, Natural gas, ect.Warranty12 months
Place of OriginCN; ZHECertificateCE, RoHS, CNAS, ilac-MRA, CMA, TUV, A&V, intertekStructure Diaphragm
