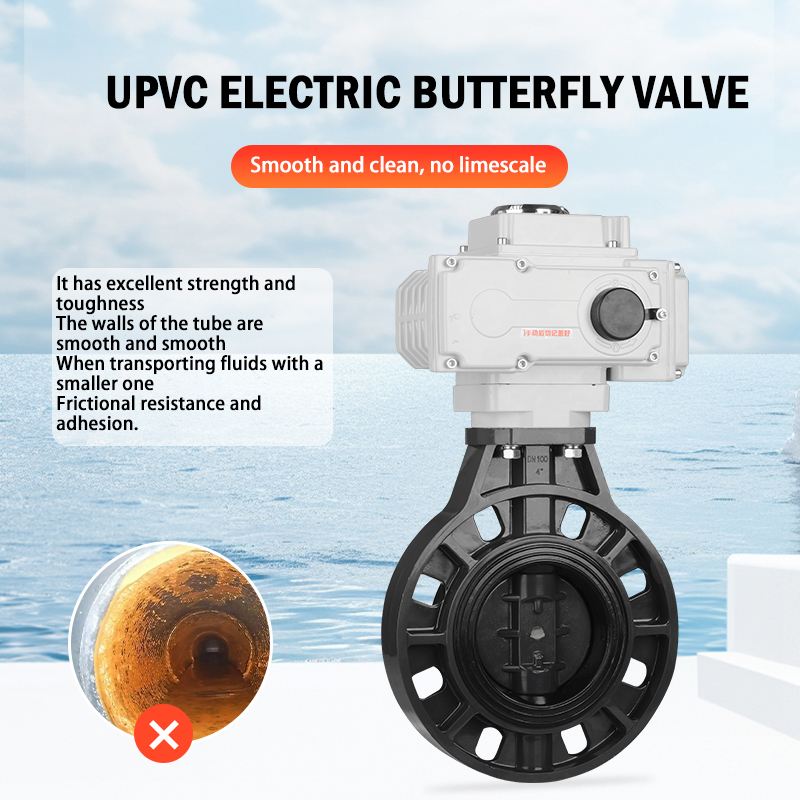

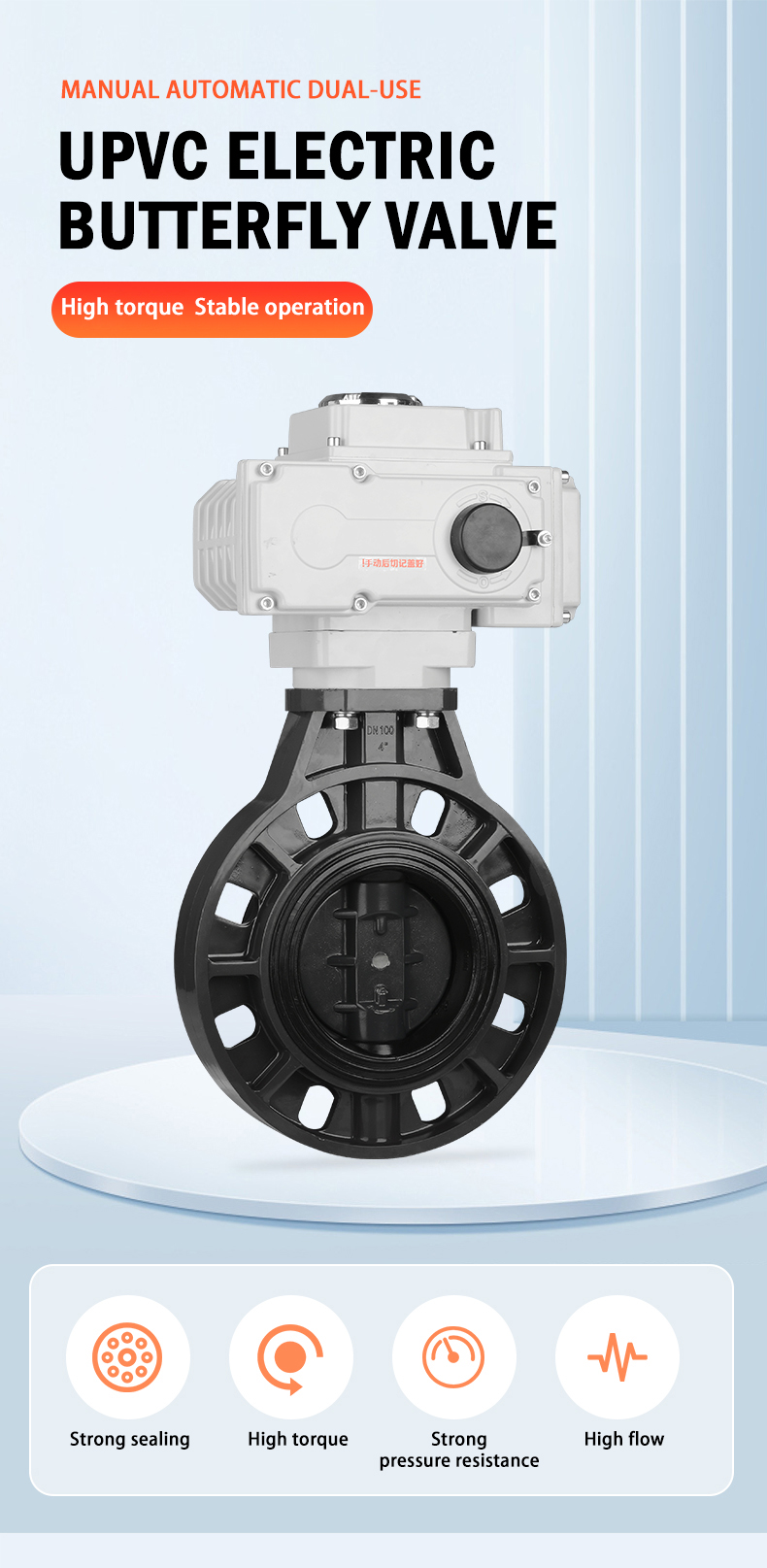

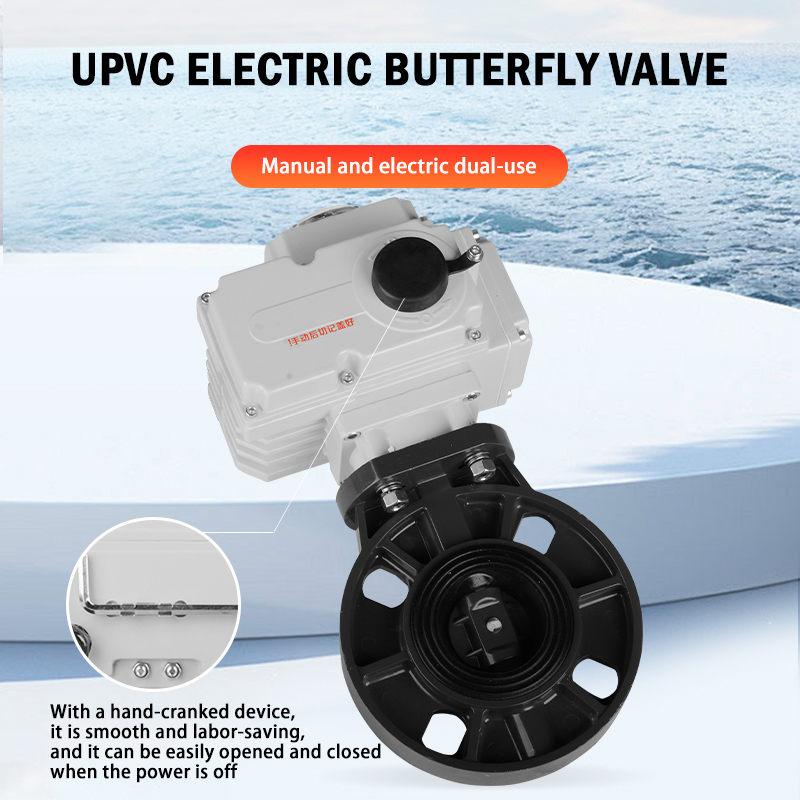

Manual automatic UPVC electric butterfly valve

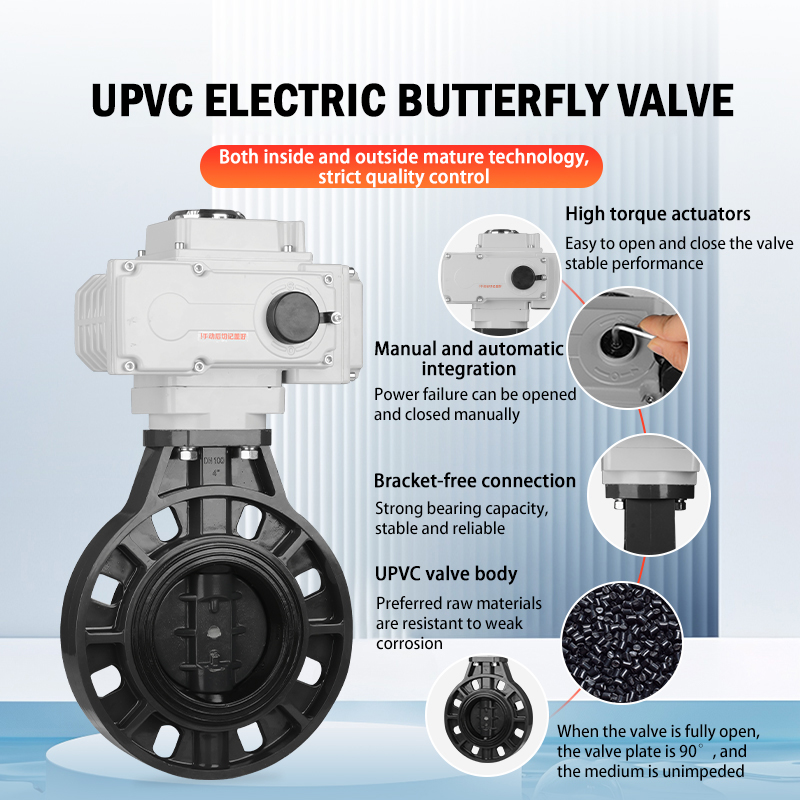

This electric butterfly valve is a manual and automatic butterfly valve, the valve body material is made of UPVC/CPVC material, the sealing material is EPDM and fluorine glue, which can withstand weak acid and alkali media, strong sealing, strong torque and pressure resistance, excellent strength and toughness, the pipe wall is smooth and smooth, and has small friction resistance and adhesion

Size Range	DN50~DN300
Pressure	DN50~DN200 1.0Mpa/DN250~DN300 0.8Mpa
Temperature	0~60℃
Voltage	AC220V/DC24V
Medium	Water, weak acid and alkali liquids

Product Details

Product name	Manual automatic UPVC electric butterfly valve	Stressful environment	atmospheric pressure
Medium	Water, weak acid and alkali liquids	OEM	YES
Temperature resistant	0~60℃	Range of motion	0~90°±5°
Pressure-resistant	DN50~DN200 1.0Mpa/DN250~DN300 0.8Mpa	Disc material	UPVC/CPVC
Sealing material	EPDM/fluorine glue	Drive mode	electrokinetic
