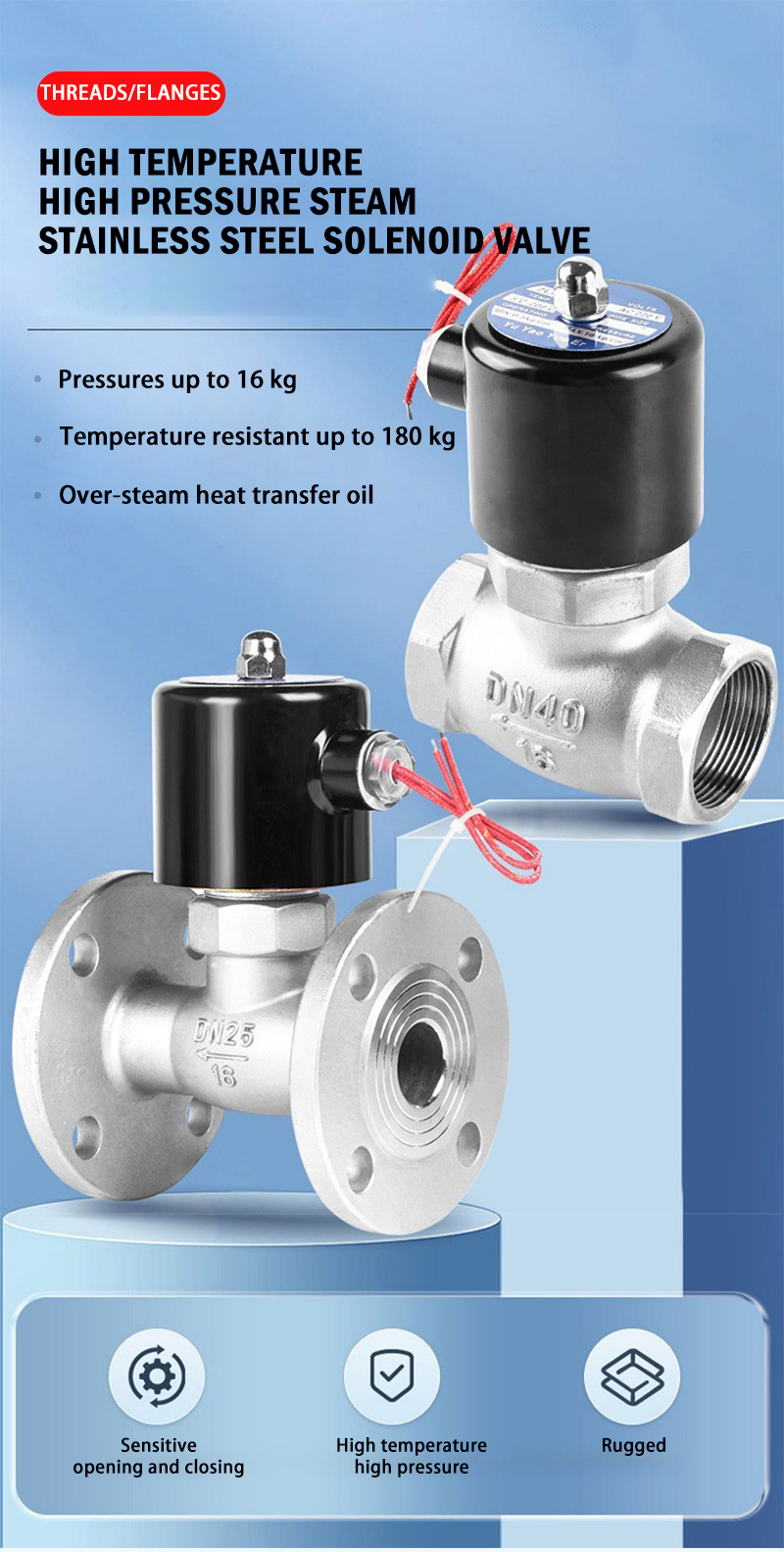

2L 304 stainless steel steam solenoid valve

This solenoid valve is a high-temperature and high-pressure steam stainless steel solenoid valve, with a pressure resistance of up to 16 kg and a temperature resistance of up to 180 °C PTFE sealed for long service life

  Size Range DN15 DN20 DN25 DN32 DN40 DN50
  Pressure 0.2~1.6Mpa(2~16kg)
  Temperature within 180°C
  Voltage AC220V/DC24V
  Medium Thermal oil, steam

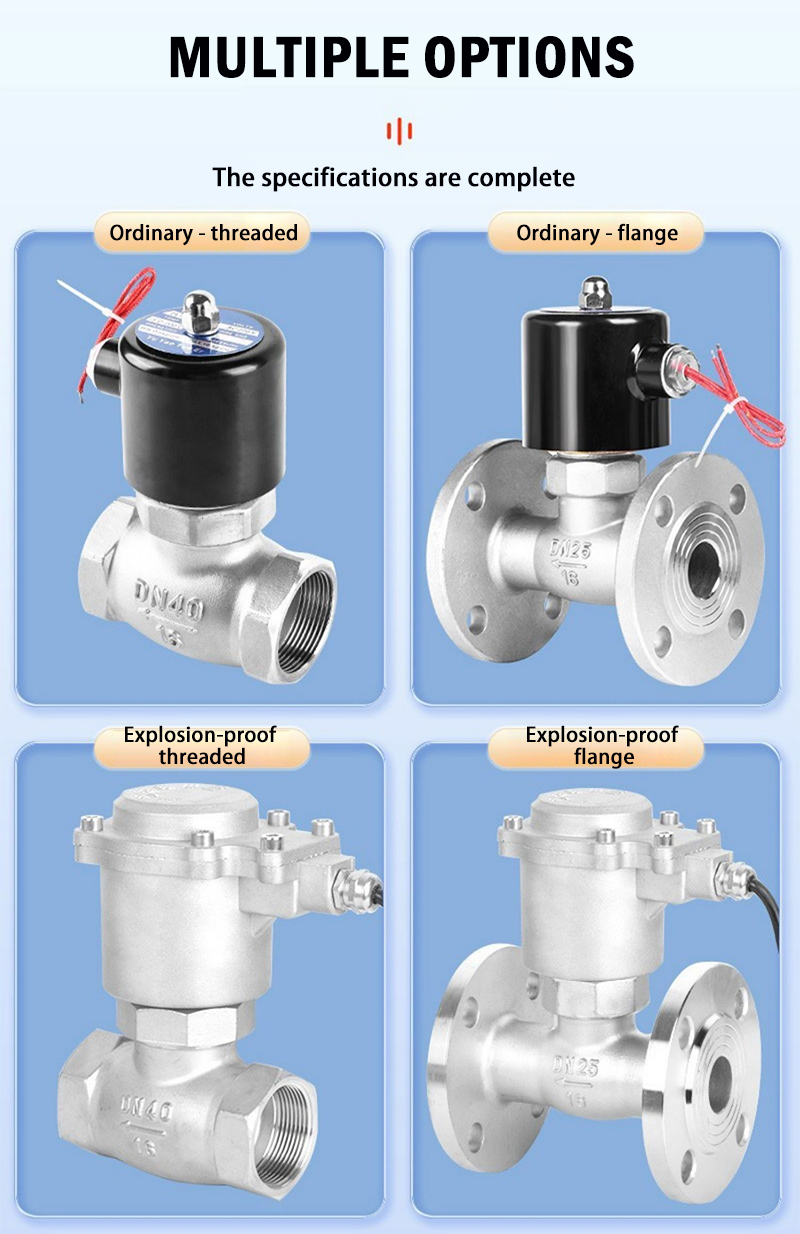

Body materialStainless SteelConnectionFemale Thread /FlangeTemperature of MediaNormal Temperature
TypeDitrct-acting — Normally Closed (N/C) / Normally Open (N/O)VoltageAC220V/DC24VCoil typeIron
SizeDN15 DN20 DN25 DN32 DN40 DN50Thread type

BSPP(G) / NPT

Waterproof level IP54
MediumSteam/OilSeal MaterialPTFEMOQ15pcs / 30pcs / 100pcs
Pressure0.2-1.6Mpa Customized supportOEM / ODMBrand Name YUEER

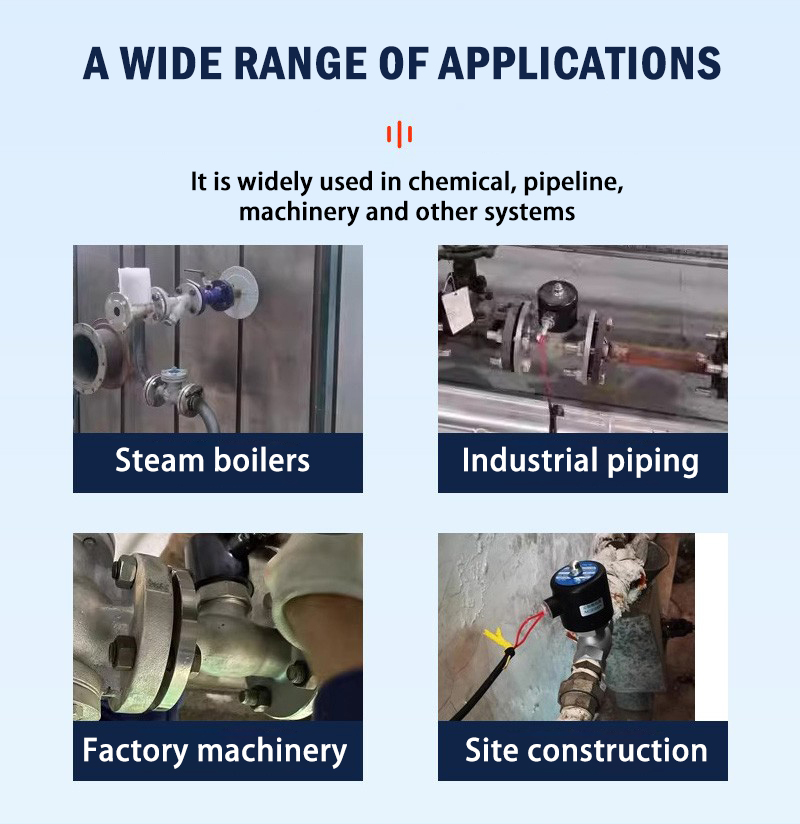

Temperaturewithin 180°CApplicationWater treatment, Food machinery, Natural gas, ect.Warranty12 months
Place of OriginCN; ZHECertificateCE, RoHS, CNAS, ilac-MRA, CMA, TUV, A&V, intertekStructure Diaphragm
