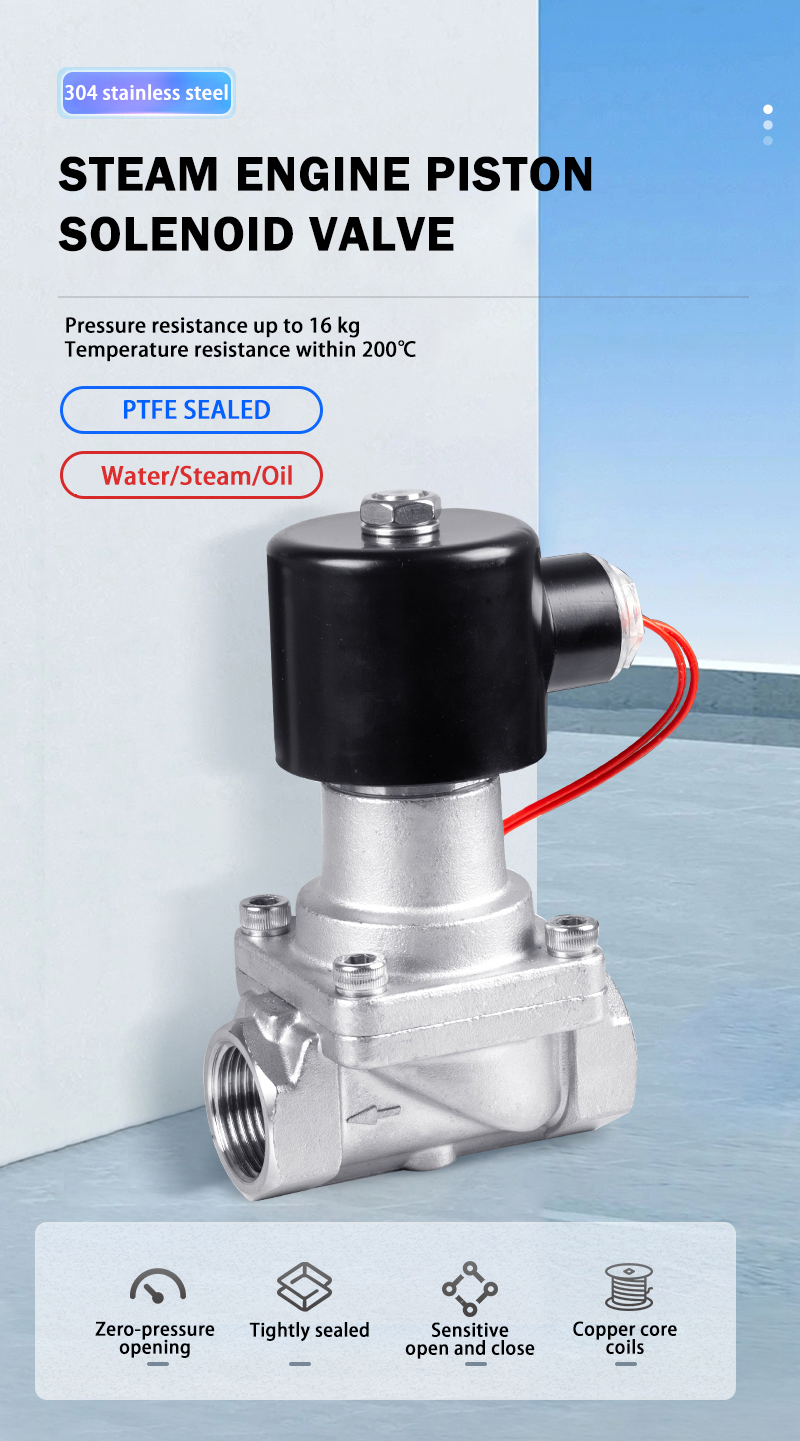

Stainless steel steam engine piston solenoid valve

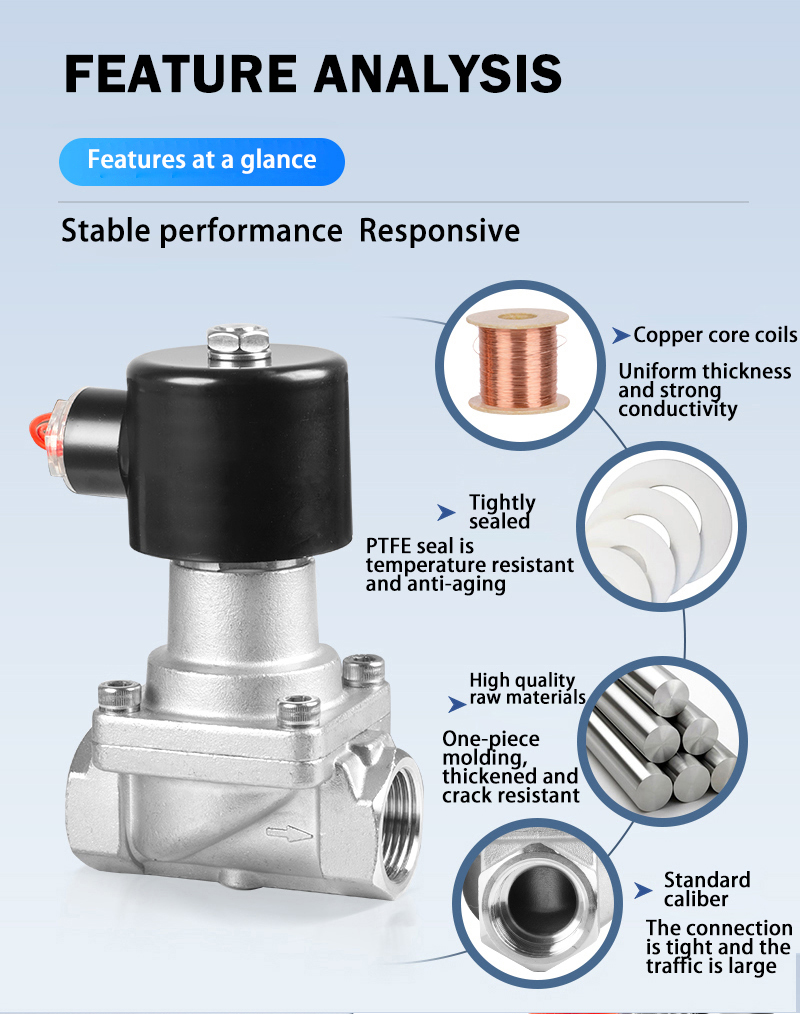

This solenoid valve is a pilot-operated, piston solenoid valve, which has a quick switch response and can be used for steam, hot oil, formaldehyde, industrial alcohol and so on. The pressure resistance is up to 16 kg, and the PTFE seal is used, and the temperature resistance can reach within 200°.

  Model   ZQHP steam valve
  Size Range DN15-DN50(1/2” 3/4” 1” 1 1/4” 1 1/2” 2”)
  Pressure 0-1.6Mpa
  Temperature 0-200℃
  Voltage AC220V/DC24V/AC110V
  Medium Steam, thermal oil, methanol, industrial alcohol

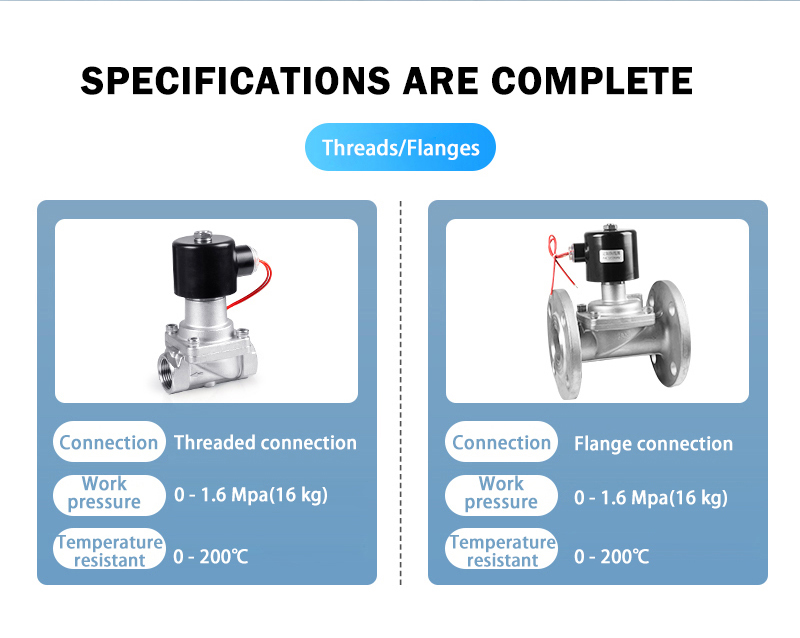

Body materialStainless SteelConnectionFemale Thread /FlangeTemperature of MediaNormal Temperature
TypeDitrct-acting — Normally Closed (N/C) / Normally Open (N/O)VoltageAC380V / AC220V / AC110V / AC24V / DC24V / DC12VCoil typePlastic
Size1/2"-2"Thread type

BSPP(G) / NPT

Waterproof level IP54
MediumWater/Steam/OilSeal MaterialPTFEMOQ15pcs / 30pcs / 100pcs
Pressure0-1.6Mpa Customized supportOEM / ODMBrand Name YUEER
Temperature-5-200℃ApplicationWater treatment, Food machinery, Natural gas, ect.Warranty12 months
Place of OriginCN; ZHECertificateCE, RoHS, CNAS, ilac-MRA, CMA, TUV, A&V, intertekStructure Diaphragm
