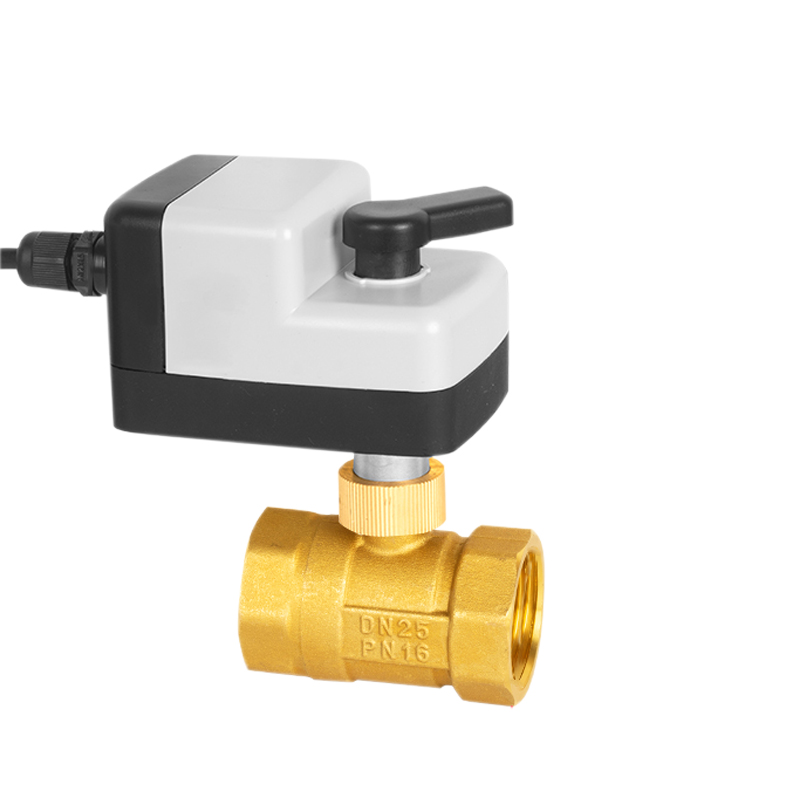

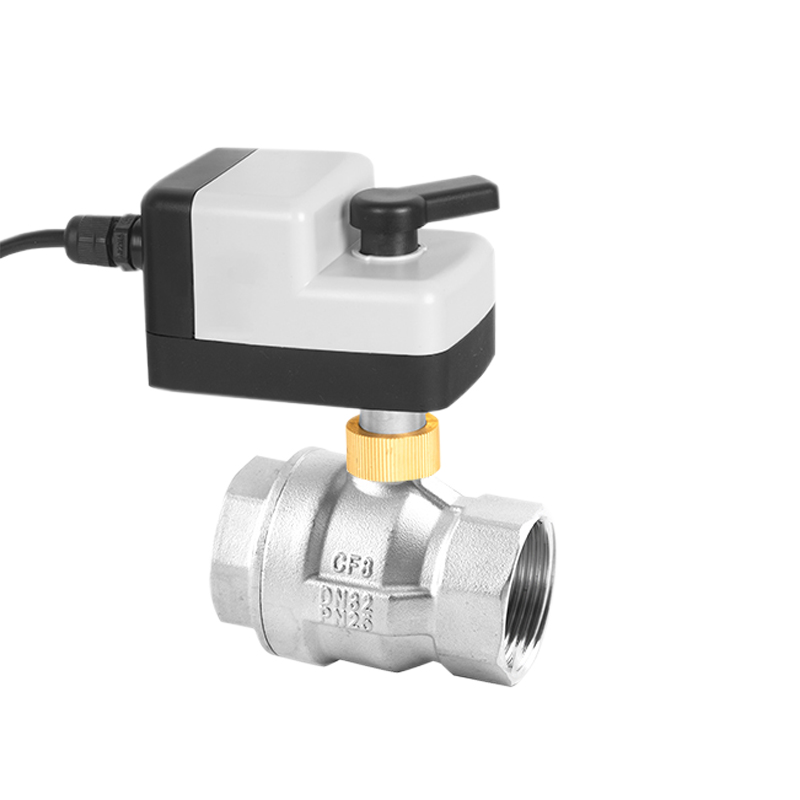

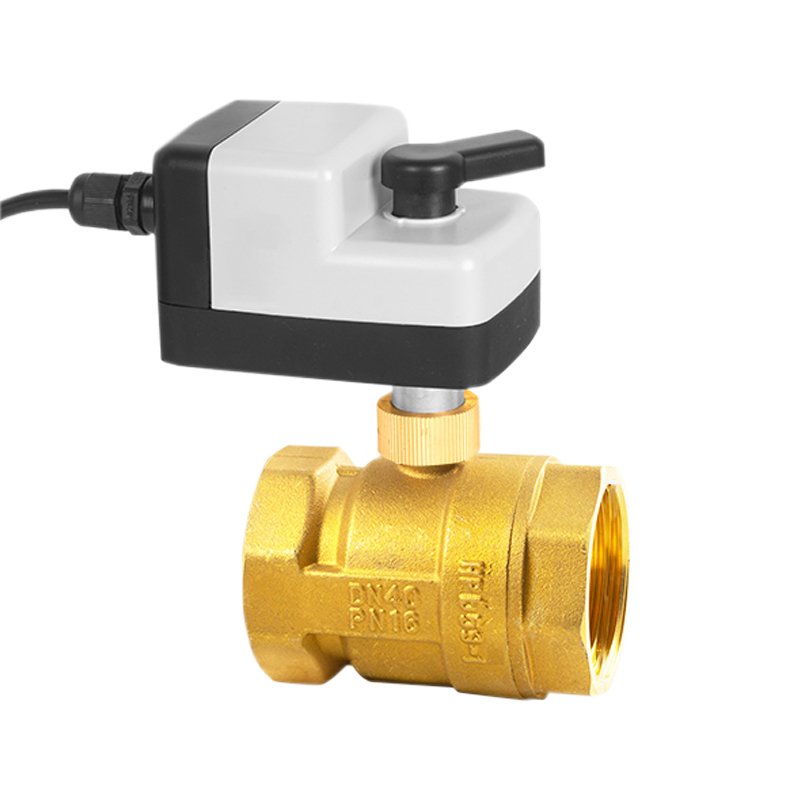

10Nm two-wire manual automatic electric ball valve

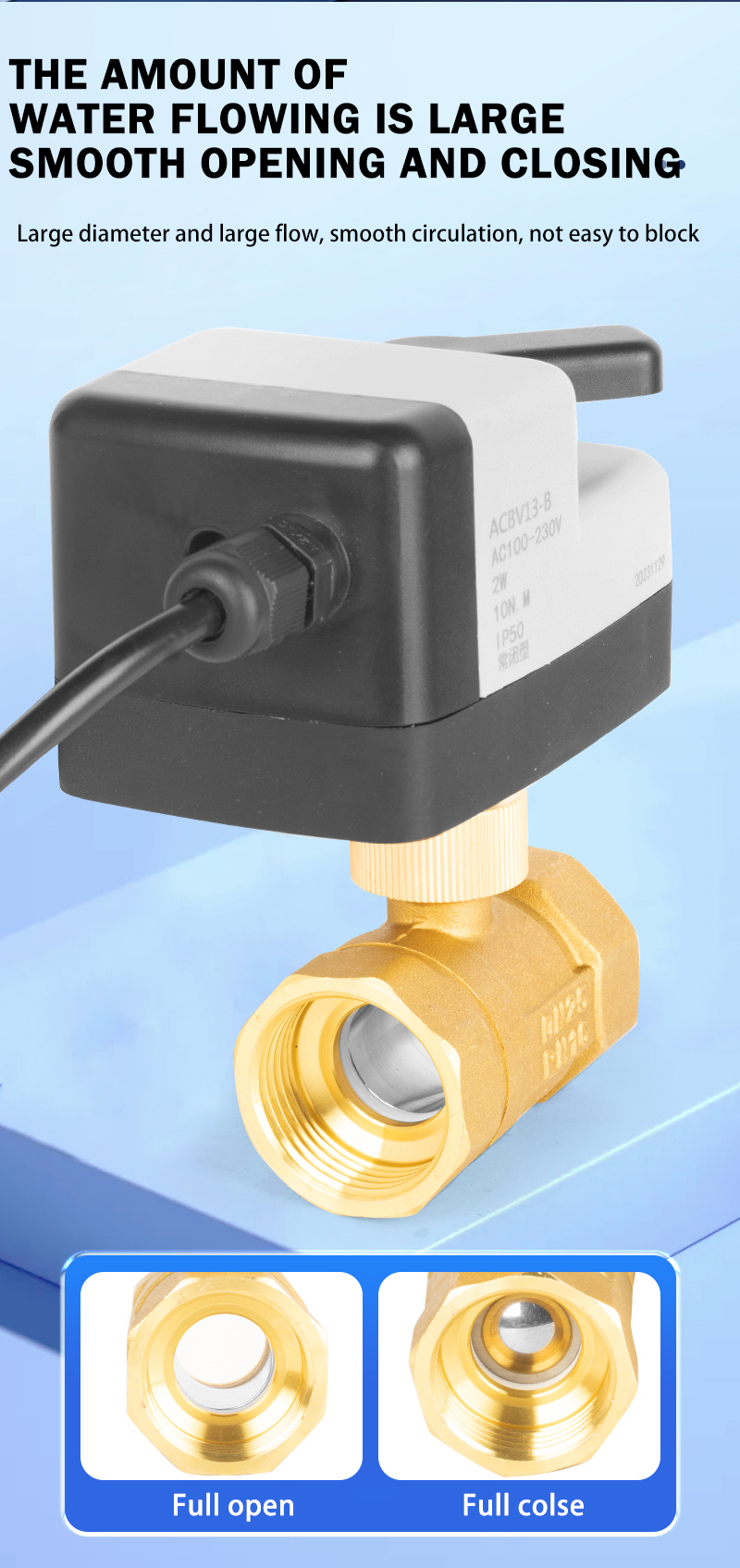

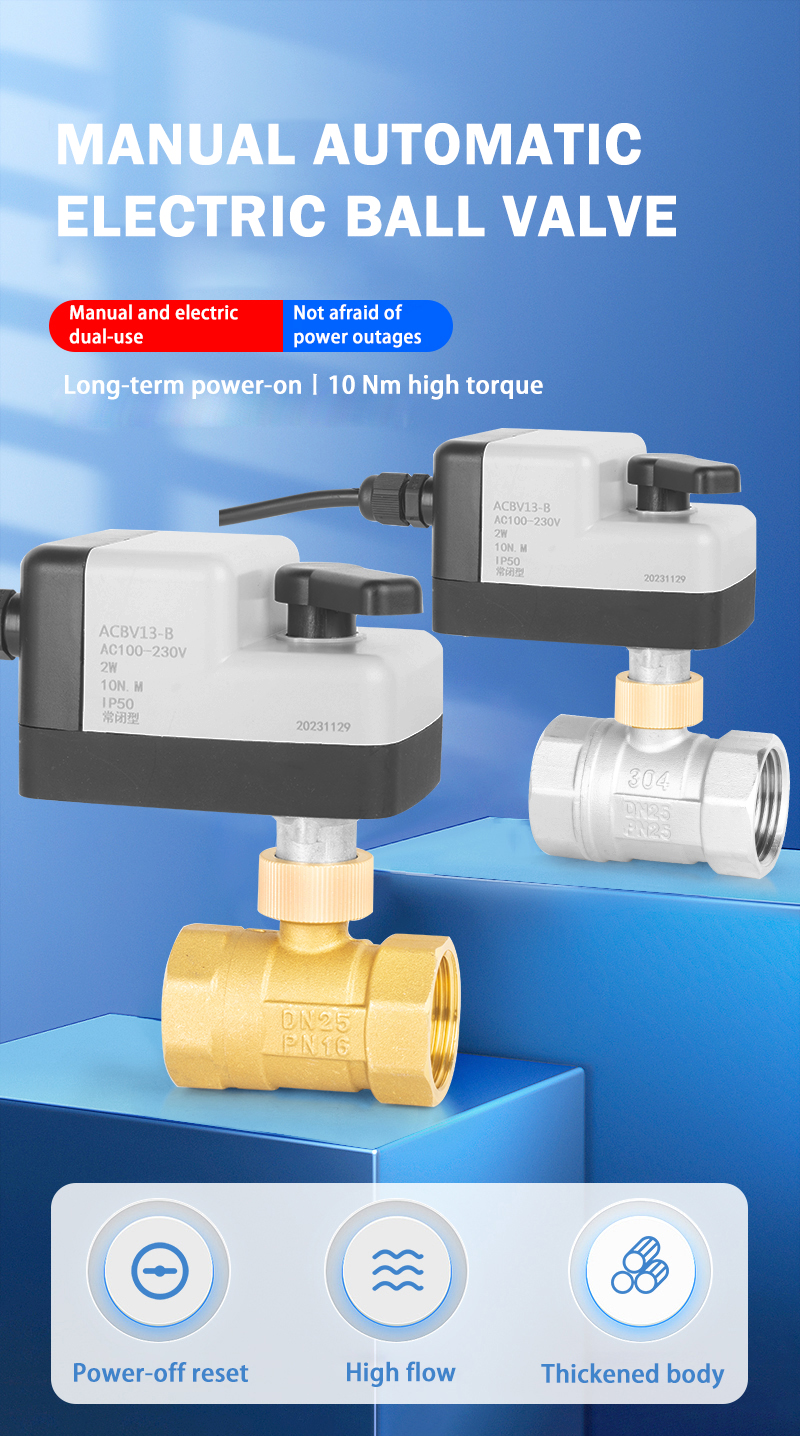

This electric ball valve is manual and electric dual-purpose, compared with the general ball valve torque of 10 Nm, there are a variety of styles to choose from, built-in strengthening capacitor storage power, large water opening and closing

Torque Range	10Nm
Size Range	DN15 DN20 DN25 DN32 DN40 DN50 (Brass) DN15 DN20 DN25 DN32 (stainless steel)
Pressure	≤0.4Mpa
Temperature	15℃~95℃
Voltage	AC220V/DC9-30V
Medium	Cold/hot water

Product Details

Name	Manual automatic electric ball valve	Voltage	AC220V/DC9-30V	Protect level	IP65
Brand name	YUEER	Thread	G	Working temp	15℃~95℃

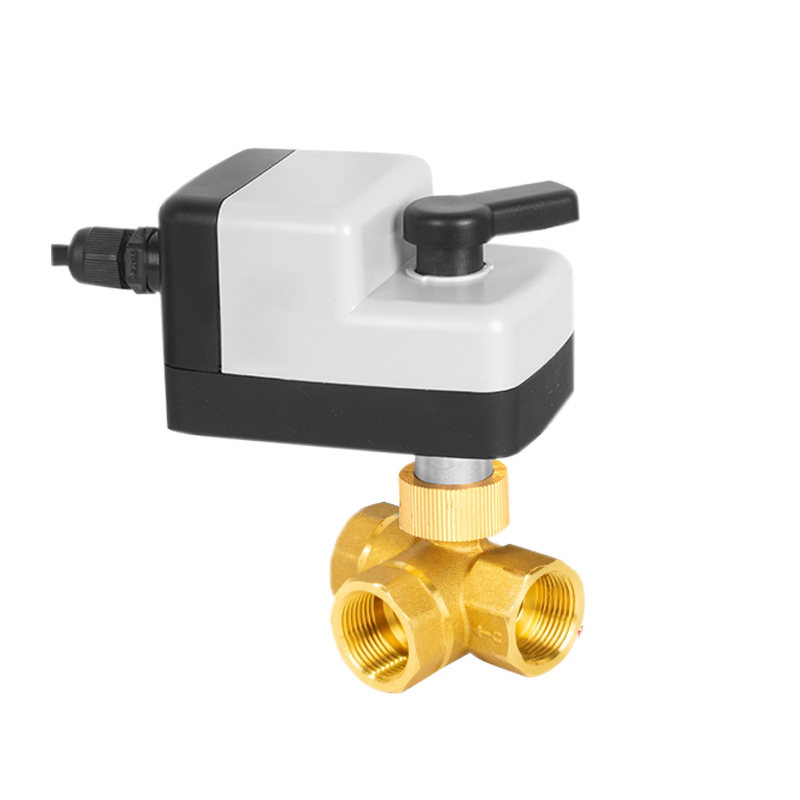

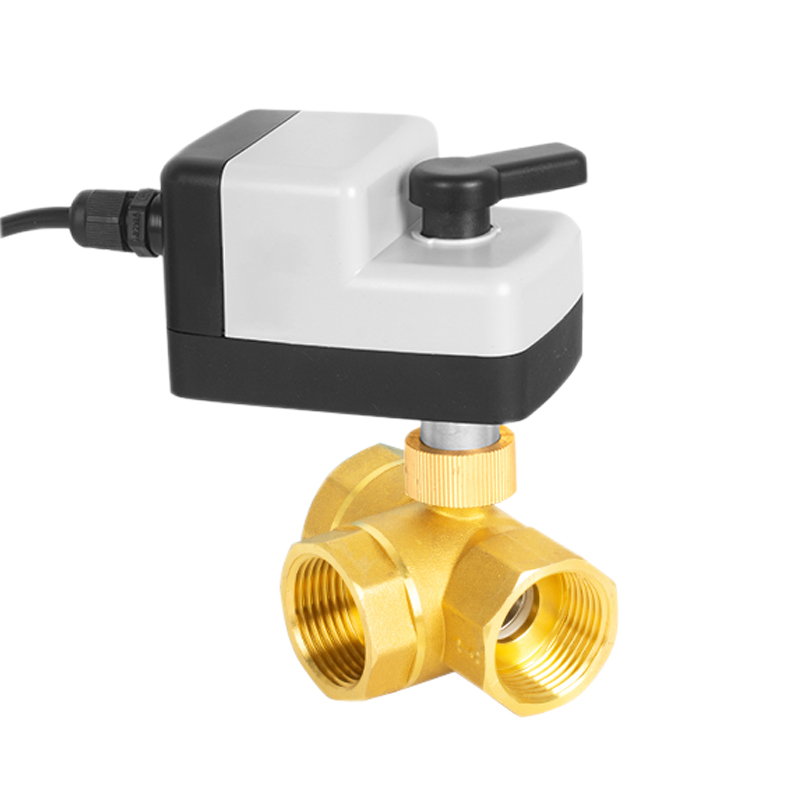

Place of Origin	CN; Zhejiang	Type	Ball valve(2way/3way)	Medium	Hot and cold water
Customized support	OEM	Torque	10Nm	Warranty	12 month
MOQ	100pcs	Valve body pressure	≤0.4Mpa	Certificate	CNAS, ilac-MRA, CMA, TUV, A&V, intertek

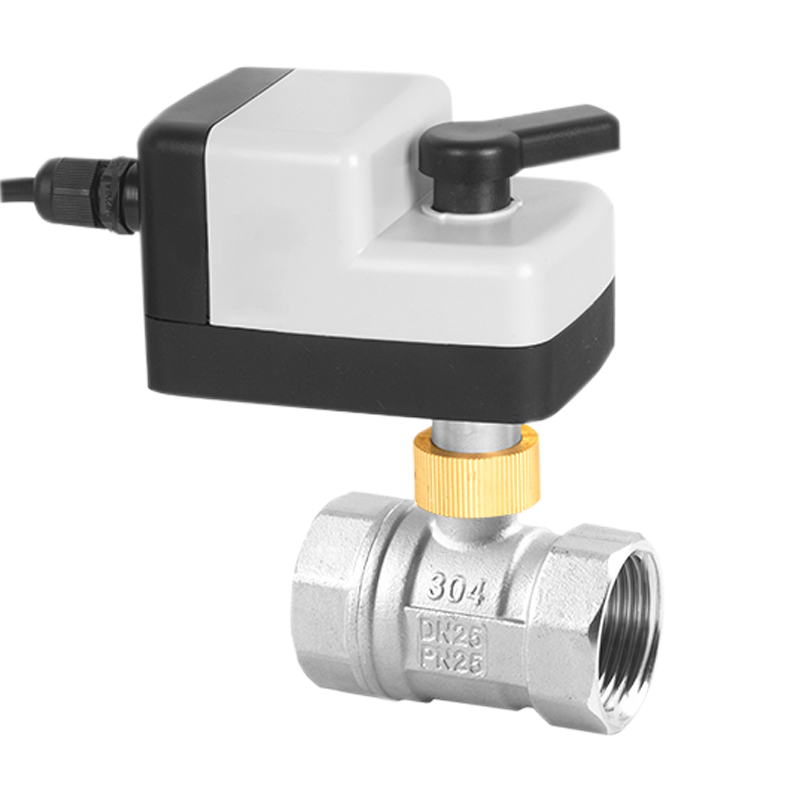

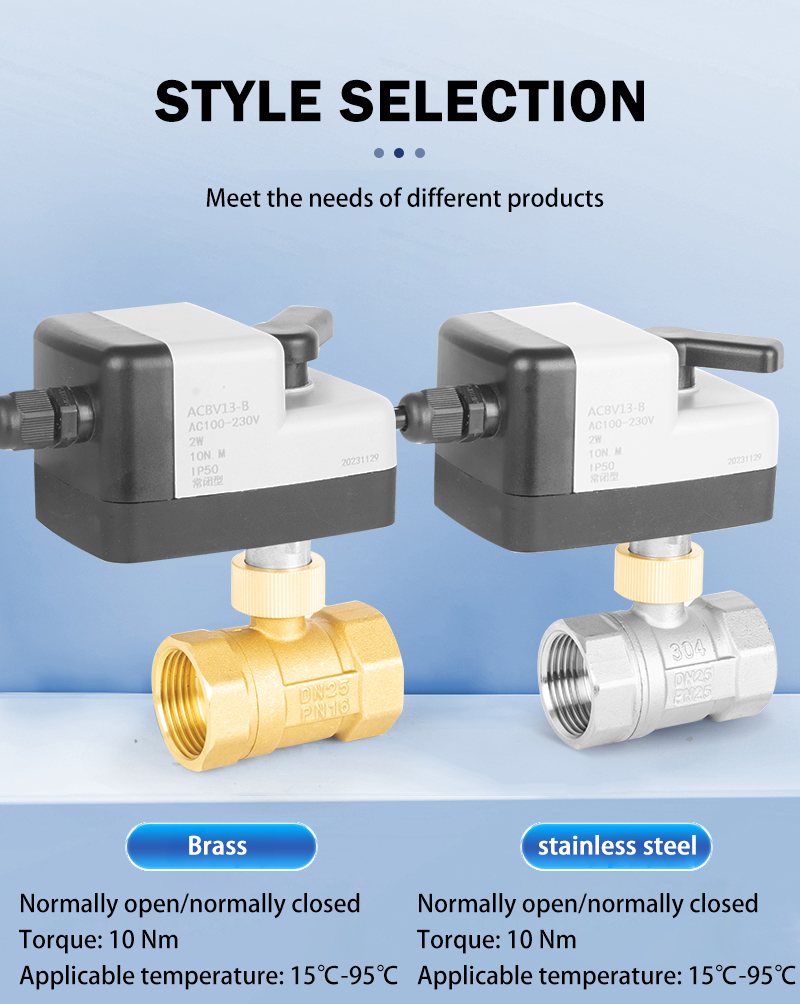

Material	Brass-Chrome Plated Copper, SS304	Wire method	2-wire-1-control	Switching times	100,000 times
Size	DN15-DN50（Brass）DN15-DN32（Stianless Steel）	Work time	15s	Electric valve capacitor	farad capacitor
