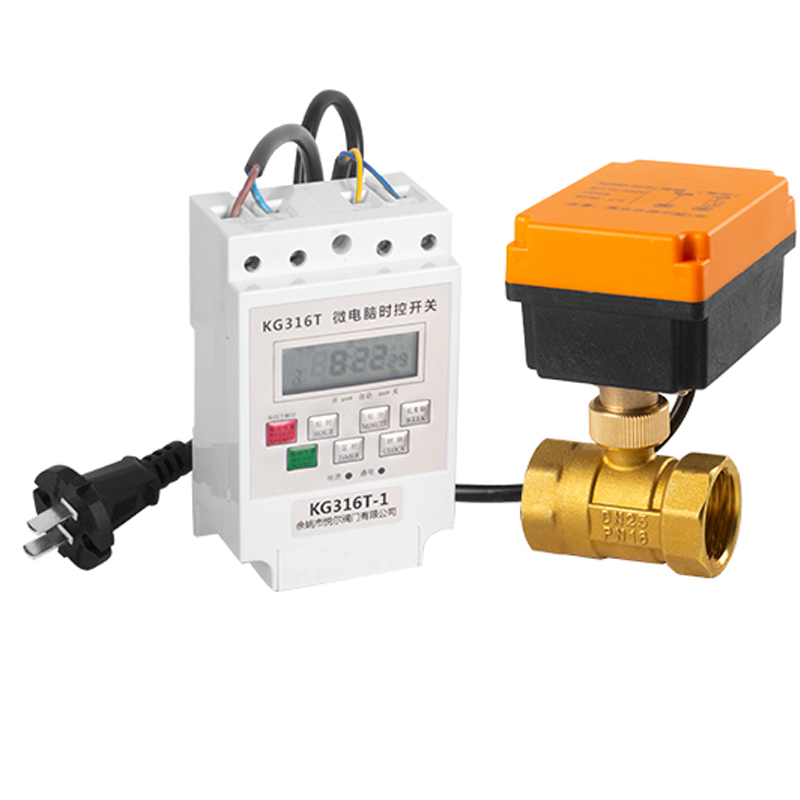

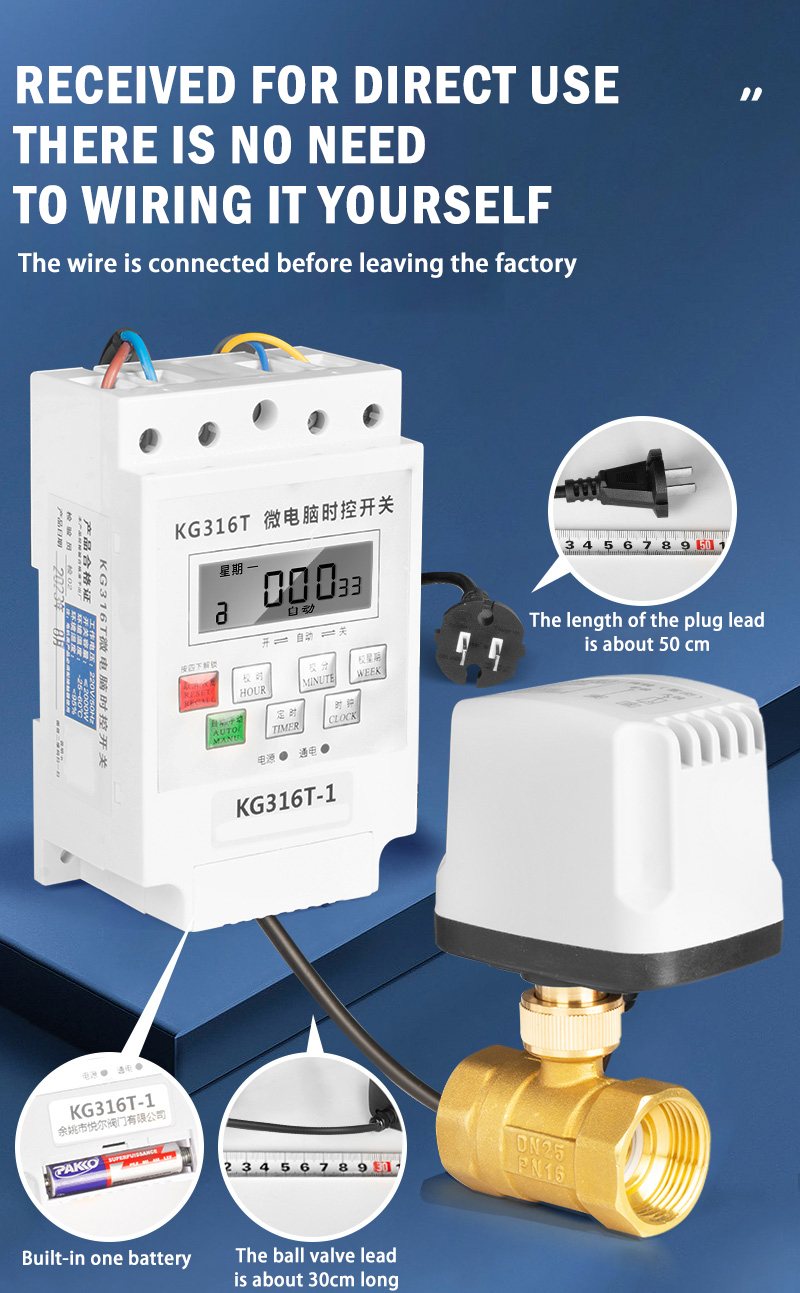

Multiple sets of timed electric ball valves

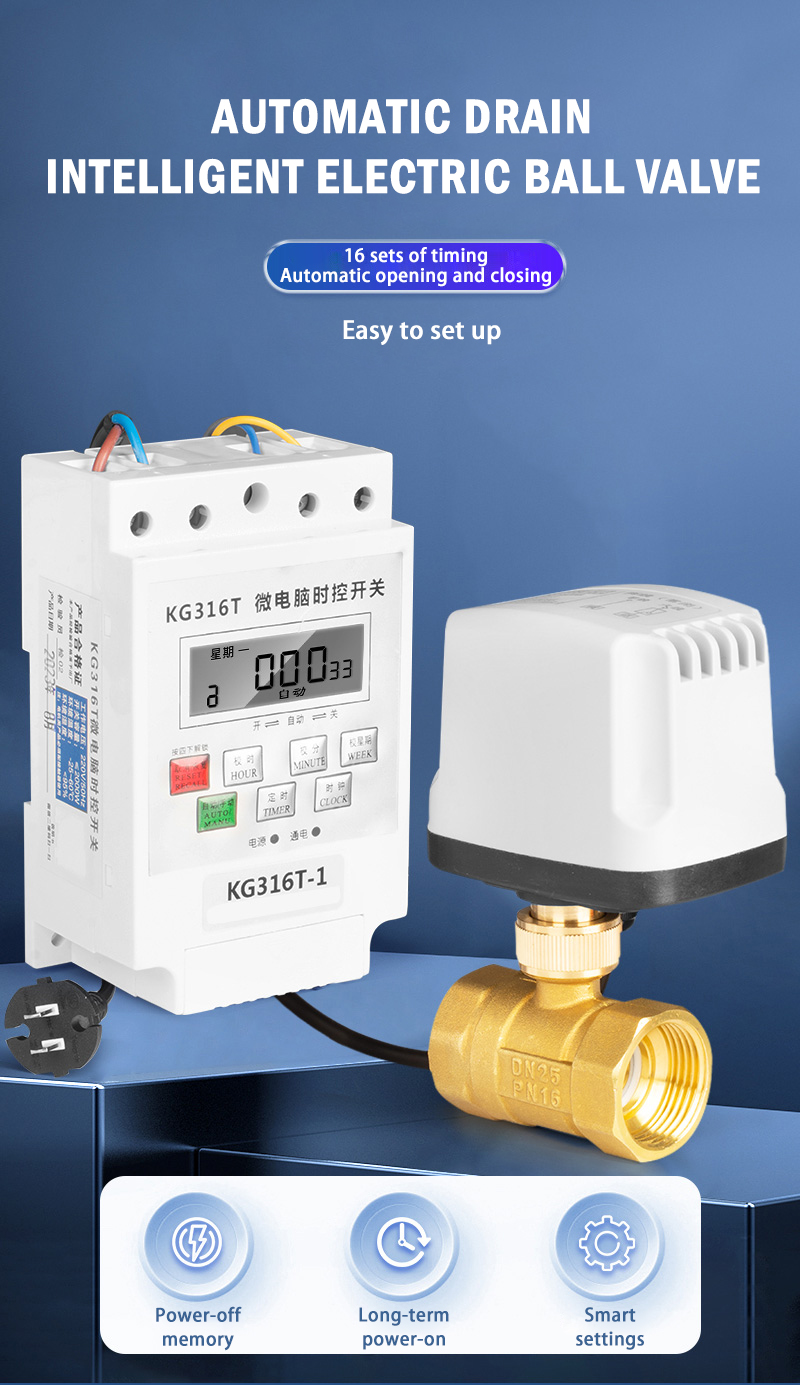

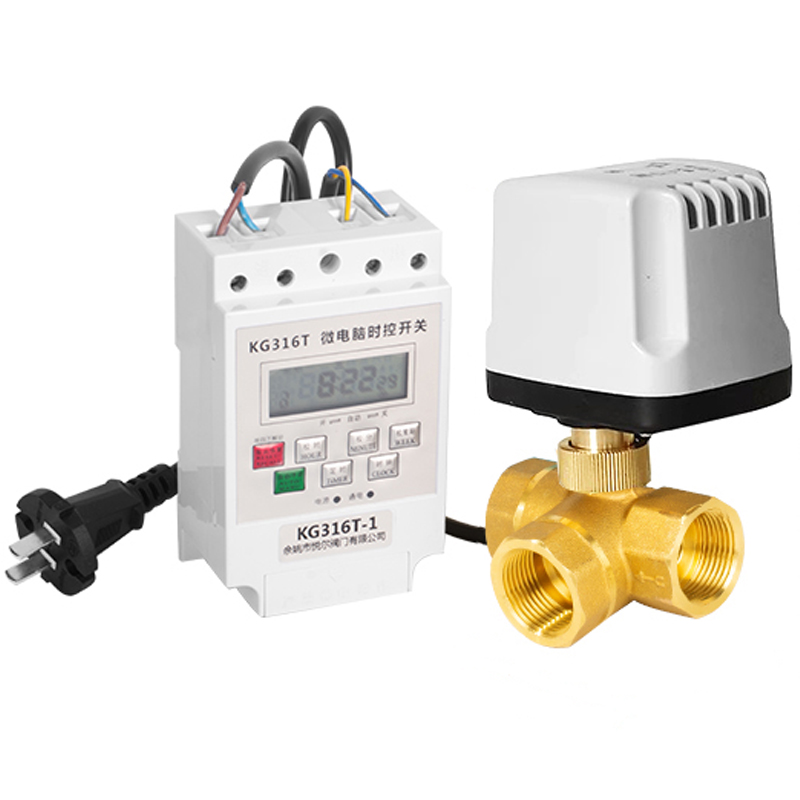

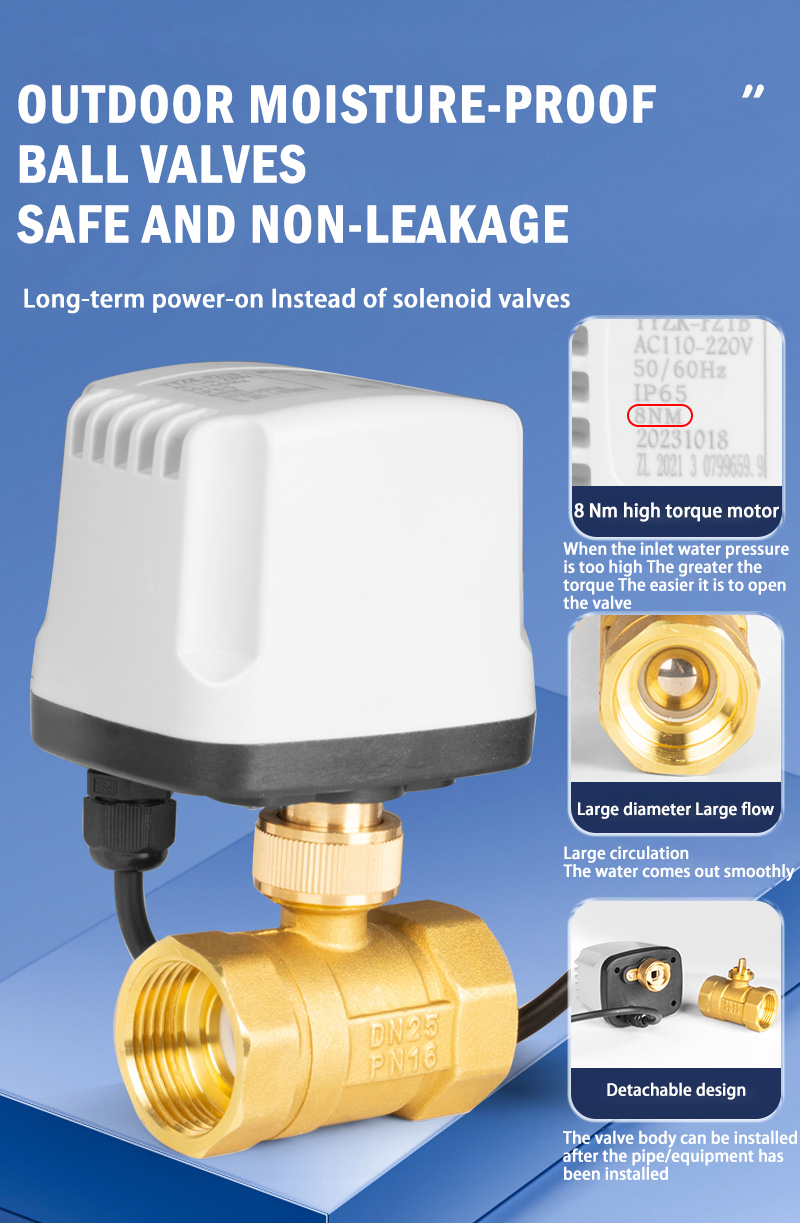

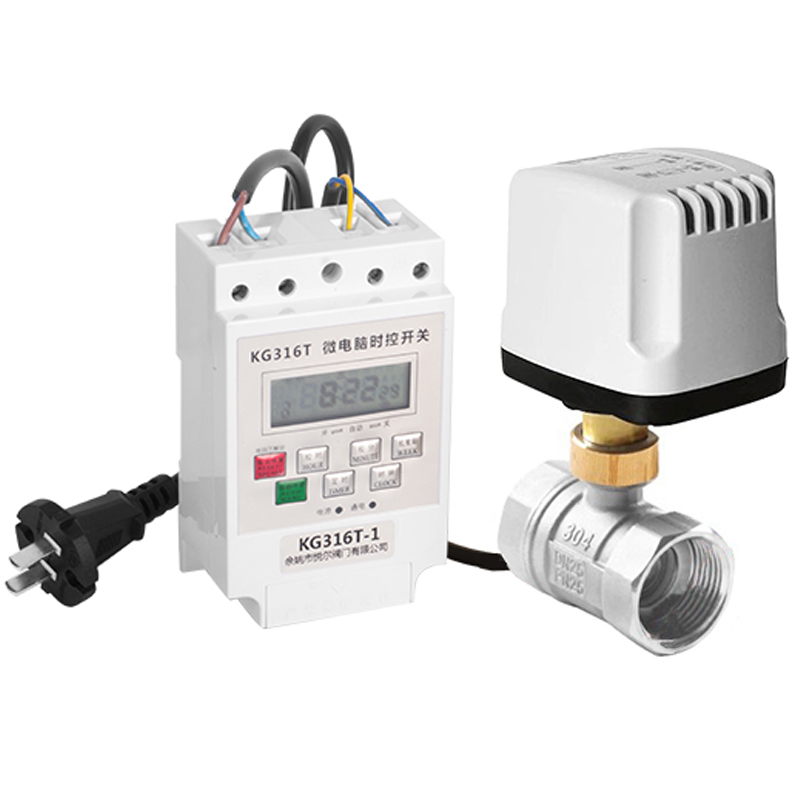

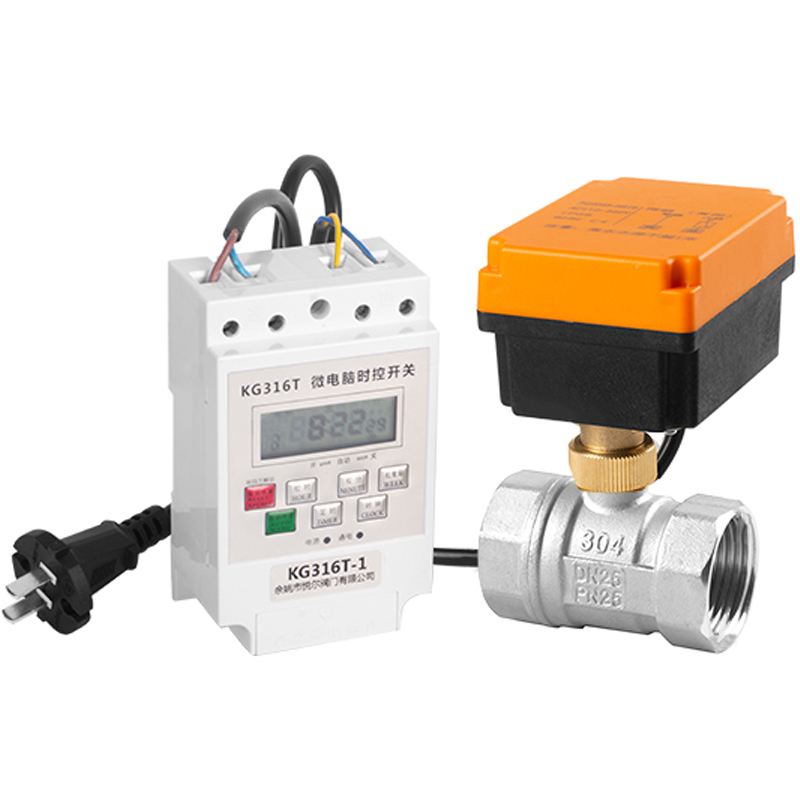

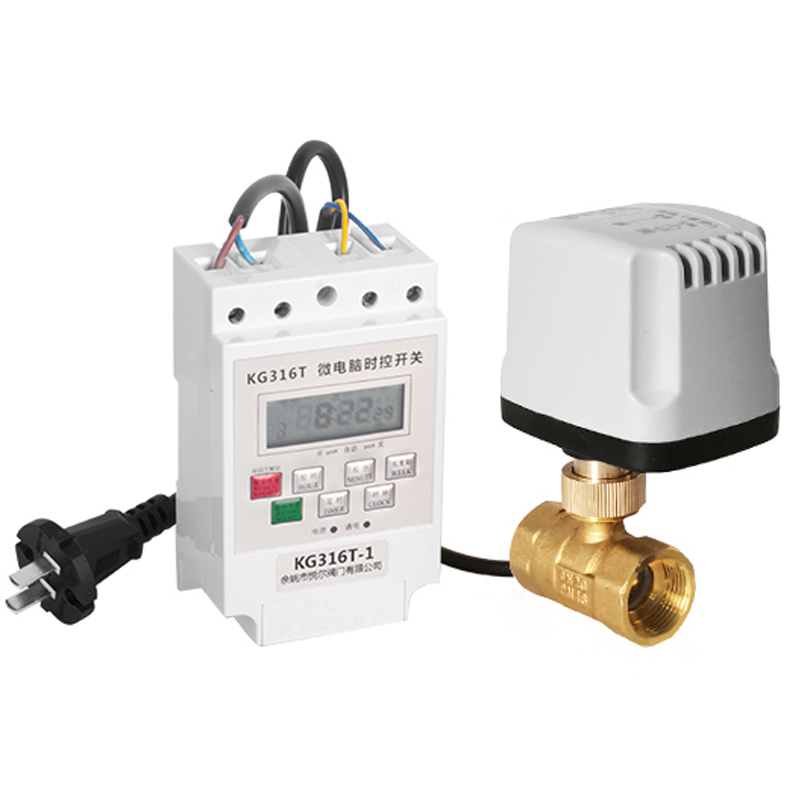

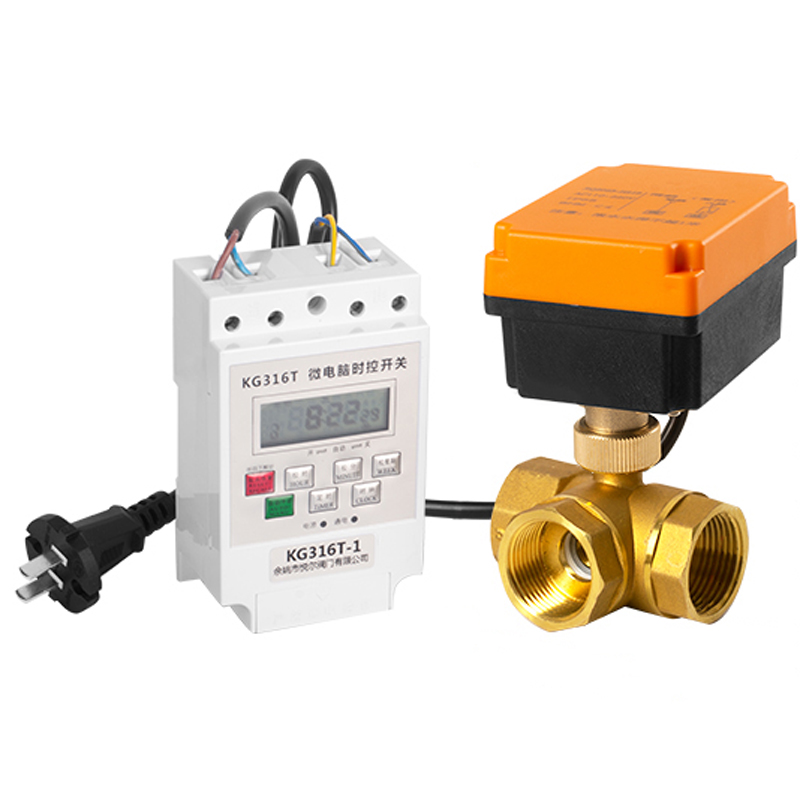

This ball valve is an automatic drain intelligent electric ball valve, which can set 16 groups of timing, there are a variety of styles to choose from, the timer setting is simple and easy to operate, and the outdoor moisture-proof ball valve is adopted

Torque Range	8Nm
Size Range	DN15 DN20 DN25 DN32 DN40 DN50 (brass)DN15 DN20 DN25 DN32 DN40 (stainless steel)
Pressure	0~0.6Mpa
Temperature	-5℃~80℃
Voltage	AC220V/DC24V
Medium	Cold/hot water

Product Details

Name	Multiple sets of timed electric ball valves	Voltage	AC220V	Protect level	IP65/IP68
Brand name	YUEER	Thread	G / NPT	Working temp	-5~80℃
Place of Origin	CN; Zhejiang	Type	Ball valve（2way/3way）	Medium	clean water
Customized support	OEM	Torque	8Nm	Warranty	12 month
MOQ	100pcs	Valve body pressure	0~0.6Mpa	Certificate	CNAS, ilac-MRA, CMA, TUV, A&V, intertek

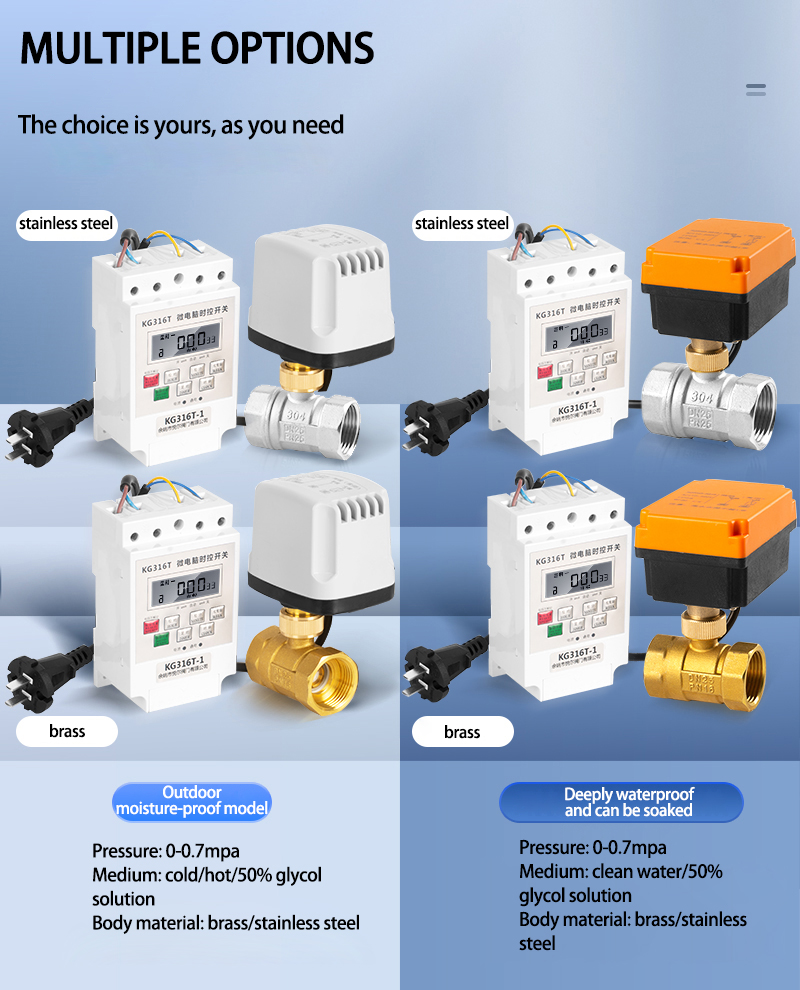

Material	Brass-Chrome Plated Copper, SS304	Wire method	2-wire-1-control	Switching times	100,000 times
Size	DN15 DN20 DN25 DN32 DN40 DN50 (brass)DN15 DN20 DN25 DN32 (stainless steel)	Work time	15s	Electric valve capacitor	farad capacitor
