Remote control electric ball valve

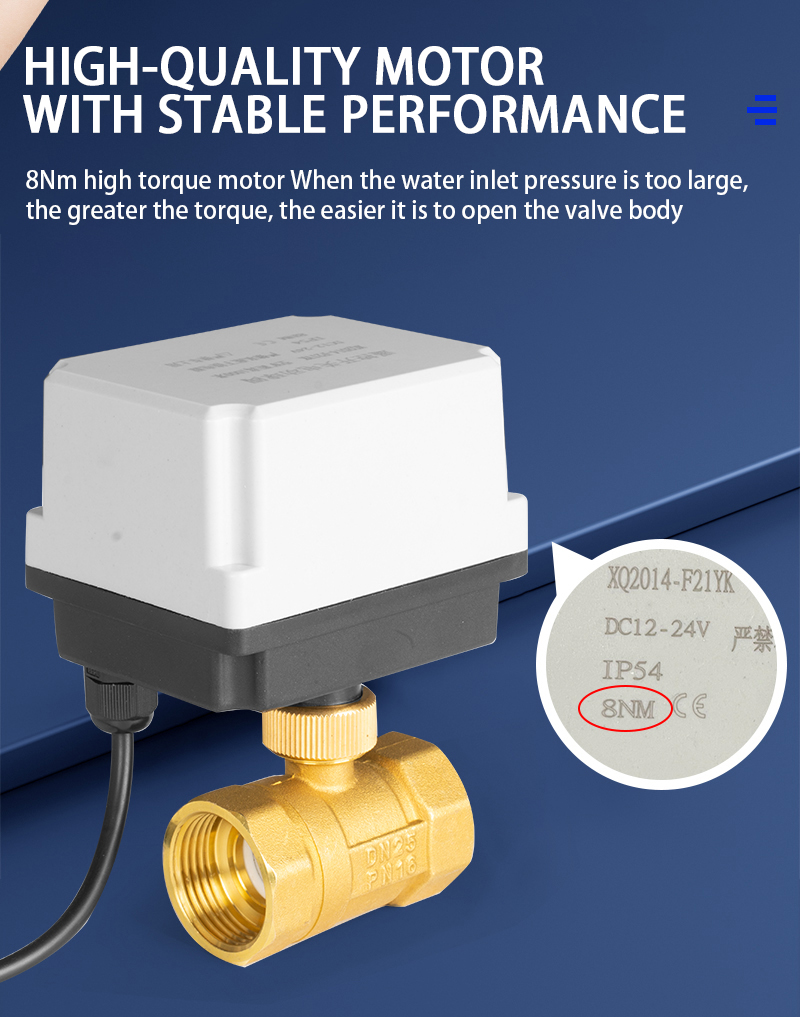

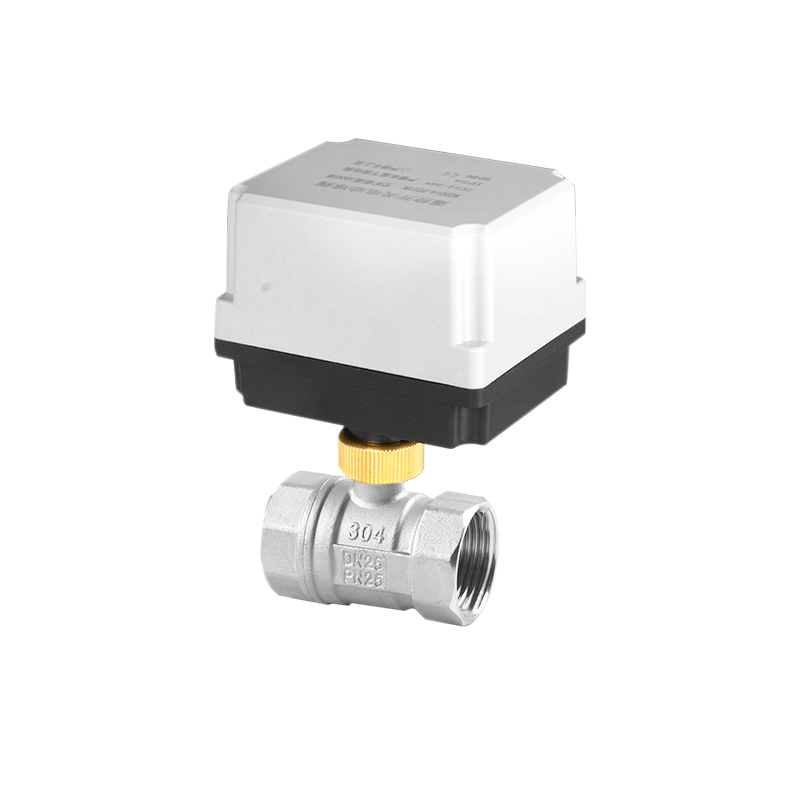

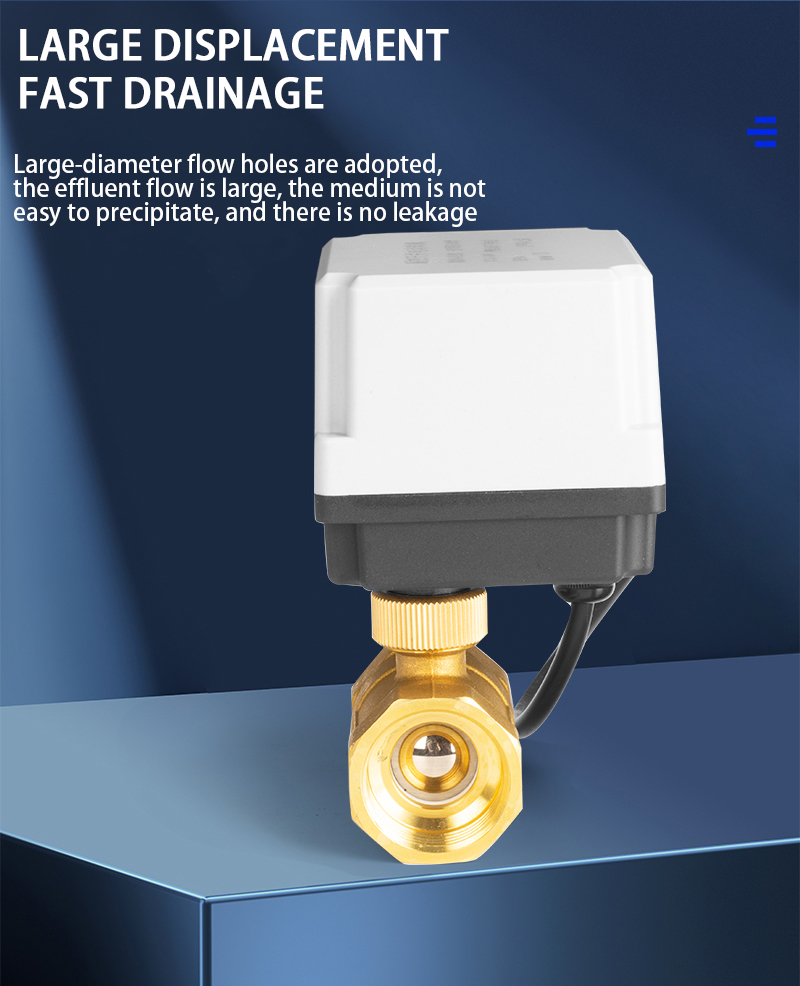

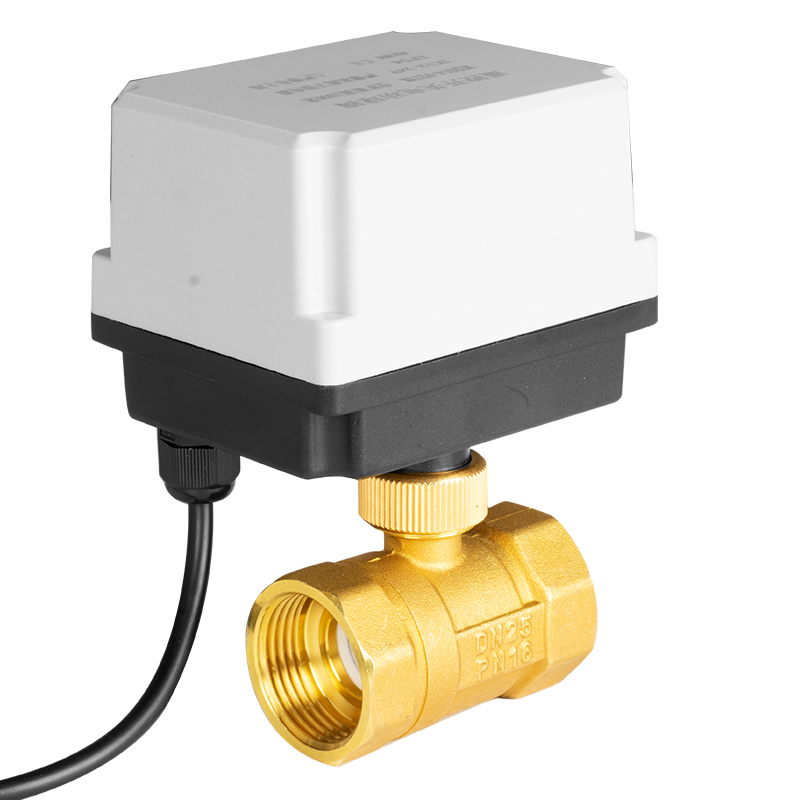

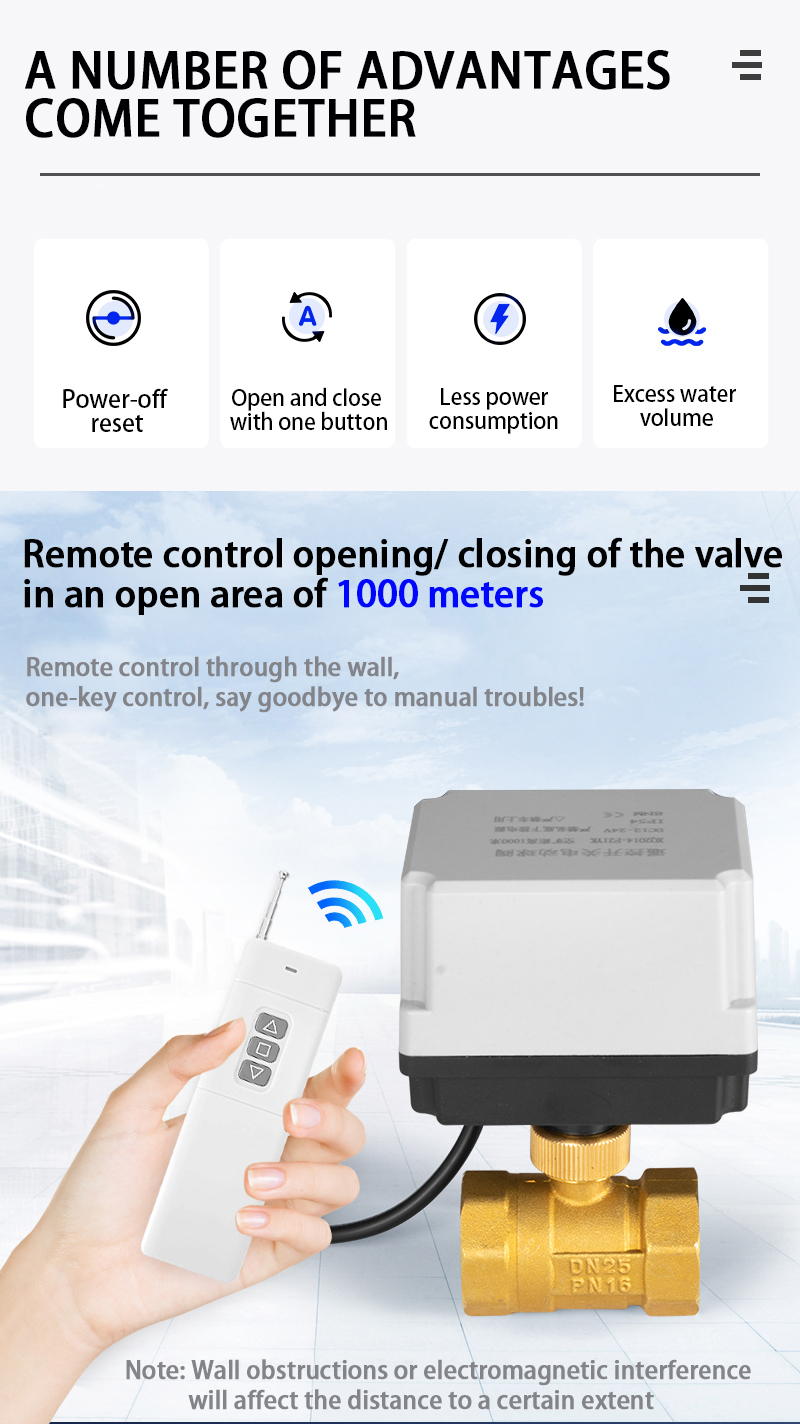

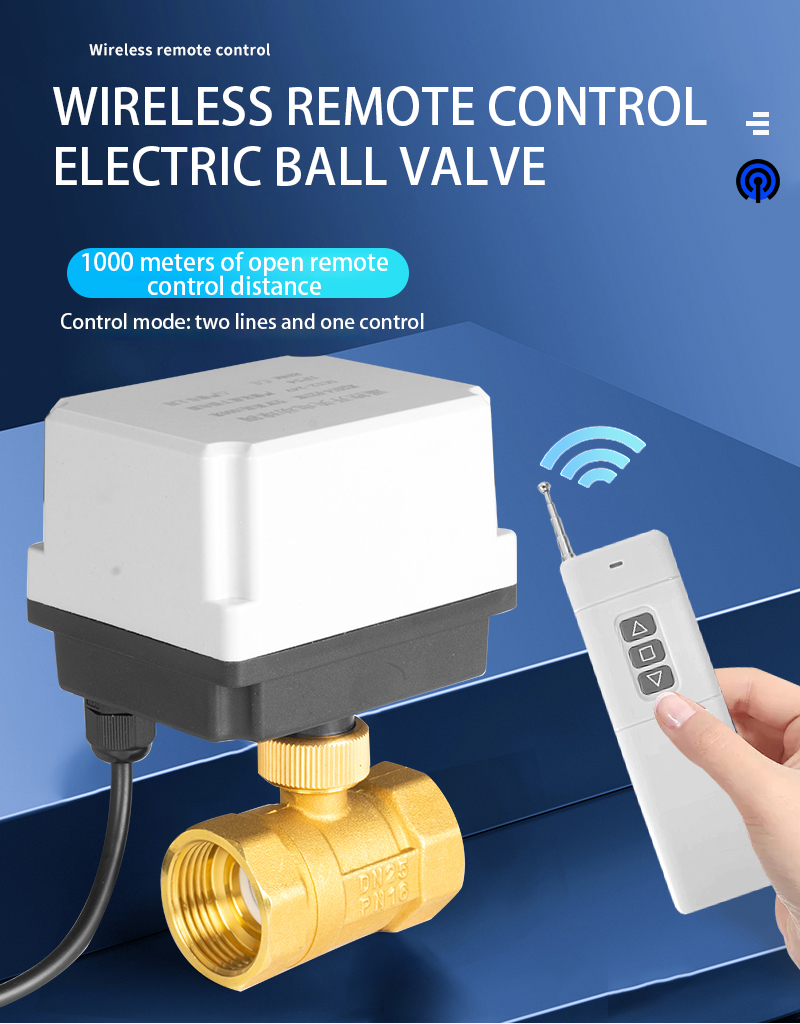

This ball valve is a wireless remote control electric ball valve, the open remote control distance reaches 1000 meters, remote one-key opening and closing, the motor is controlled by 8 Nm large torque motor is stable and durable, the valve body has two styles of brass and stainless steel to choose from, and the flow is large and the water is released quickly

Torque Range	8Nm

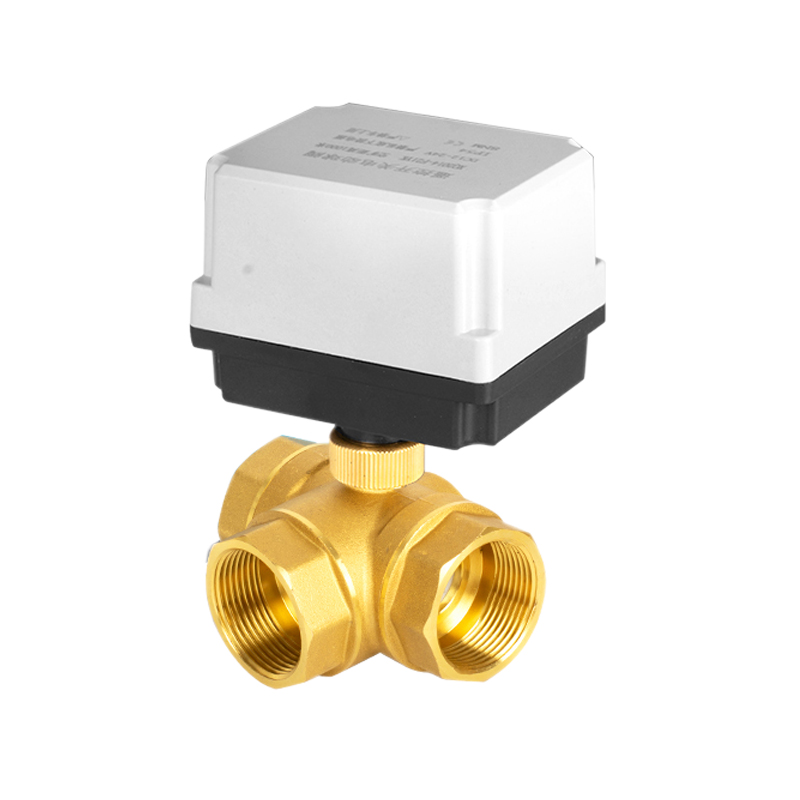

Size Range	DN15 DN20 DN25 DN32 DN40 DN50 (two-way brass)DN15 DN20 DN25 DN32 (stainless steel tee) DN15 DN20 DN25 DN32 DN40 (brass tee)
Pressure	≤0.4Mpa
Temperature	-5℃~80℃
Voltage	AC220V/AC110V/AC24V/SC8V/DC12V/DC24V
Medium	Cold/hot water

Product Details

Name	Remote control electric ball valve	Voltage	AC220V/AC110V/AC24V/SC8V/DC12V/DC24V	Protect level	IP65
Brand name	YUEER	Thread	G	Working temp	-5℃~80℃

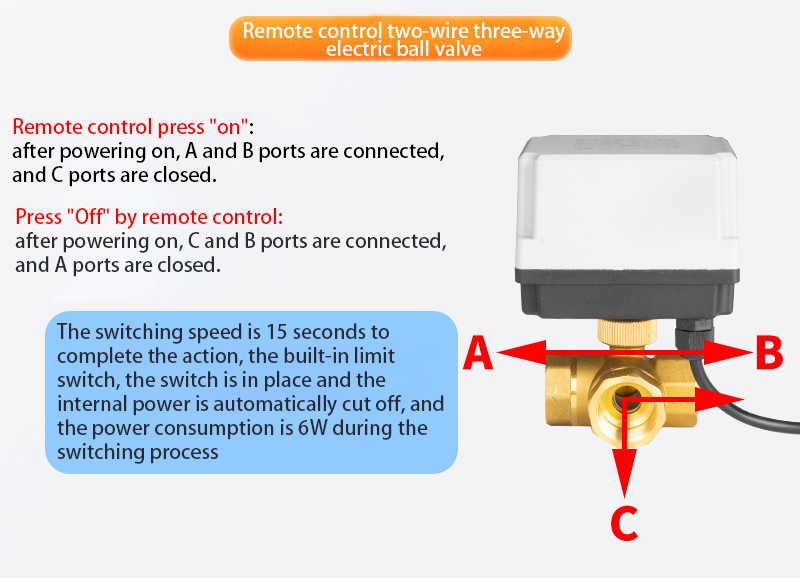

Place of Origin	CN; Zhejiang	Type	Ball valve(2way/3way)	Medium	clean water
Customized support	OEM	Torque	8Nm	Warranty	12 month
MOQ	100pcs	Valve body pressure	≤0.4Mpa	Certificate	CNAS, ilac-MRA, CMA, TUV, A&V, intertek
Material	Brass-Chrome Plated Copper, SS304	Wire method	2-wire-1-control	Switching times	100,000 times
Size	DN15-DN50	Work time	15s	Electric valve capacitor	farad capacitor
